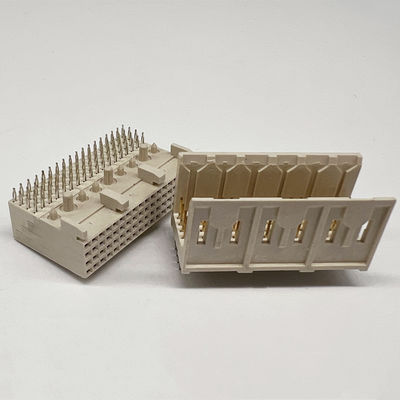

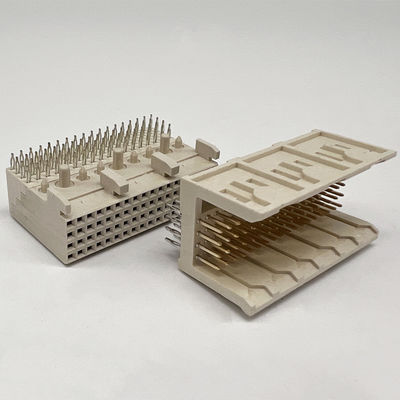

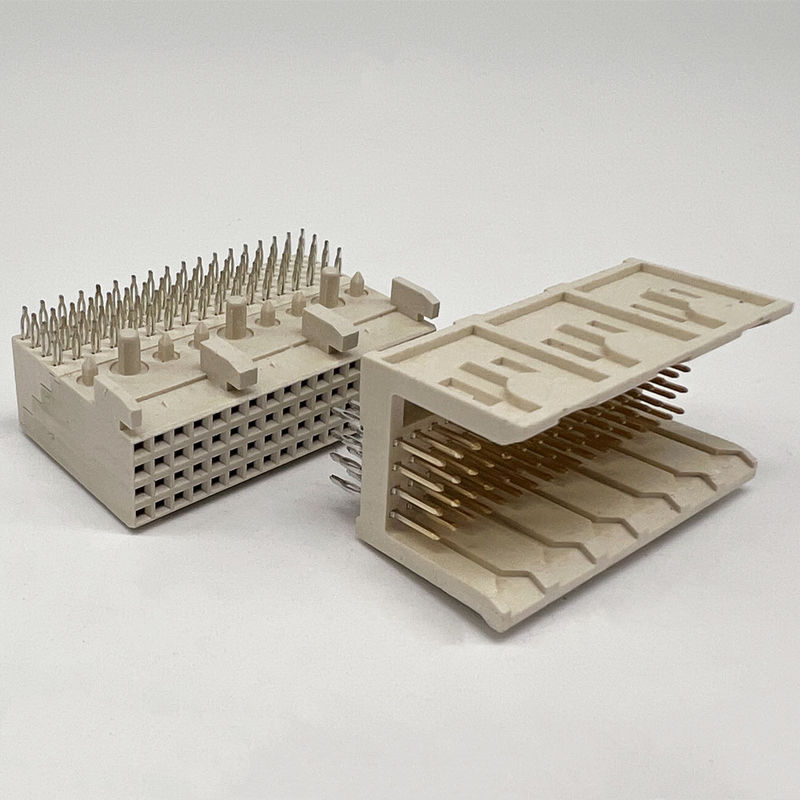

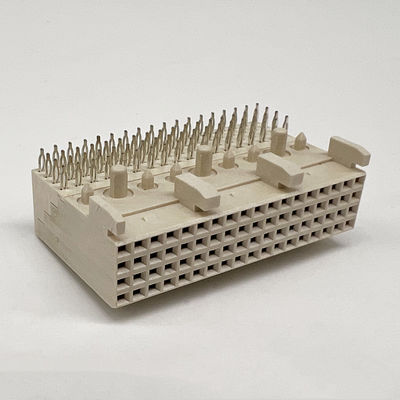

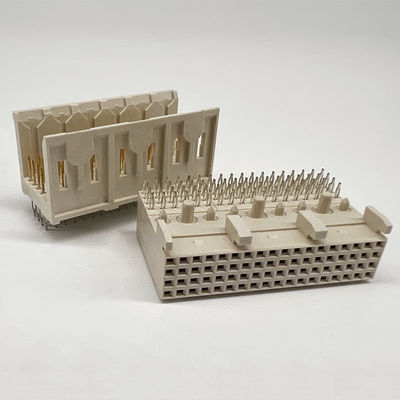

Hard Metric Connectors 2.0mm 24pin 48pin 72pin 96pin Press-Fit Type DIN41612 Euro Connector

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	RoHS/REACH/ISO9001
Model Number:	3814-4XXMPXXNA01

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$1.39 - $6.59/pieces
Packaging Details:	Tray/Carton
Delivery Time:	7~10
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	DIN41612 Hard Metric Connectors	Gender:	Female,Male
Application:	PCB,AV Equipment,medical Equipment,military Communication,aerospace,Phone Watch, Electronic	Current Rating:	3A
Material:	LCP	Plating:	Sel.Gold/Tin
Contacts:	Press-Fit	Contact Material:	Phosphor Bronze
Color:	Beige	Row:	4row 5row
Packing:	Tray Packing
Highlight:	72pin Hard Metric Connectors , 24pin Hard Metric Connectors , 96pin Hard Metric Connectors

Hard Metric Connector 2.0mm 24pin 48pin 72pin 96pin Press-Fit contacts DIN 41612 Connector 4 Row Male Female Right Angle Phosphor Bronze

Product Name	Din 41612 Connector
Positions	24-96Pin
Row	4,5 row
Current Rating	3.0AMP
Contact Resistance	30mΩ Max
Withstand Voltage	1000V AC/DC
Insulation Resistance	1000mΩ
Operation Temperature	﹣55℃ to +105℃
Contact Material	Phosphor Bronze
Contact Plating	Au And Sn over Ni
Fixing Material	Phosphor Bronze
Fixing Plating	Sn over Ni
Housing Material	LCP

Item name: DIN 41612 Connector

1. The product precision and reliable performance.

2. Material: Plastic PBT and PA6T, terminal material: copper alloy.

3. DIN 41612 connectors with five rows(a, b, c,d,e) of contacts on 2.54mm square grid are available in wire-wrap or solder tail type terminations: 4row 24pin, 48pin 72pin,96pin, 32pin 48pin 96pin, 5row 30pin,60pin 120pin are available.
