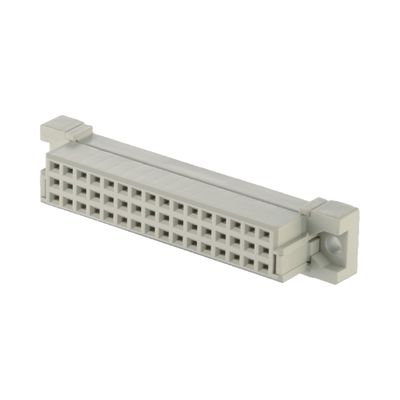

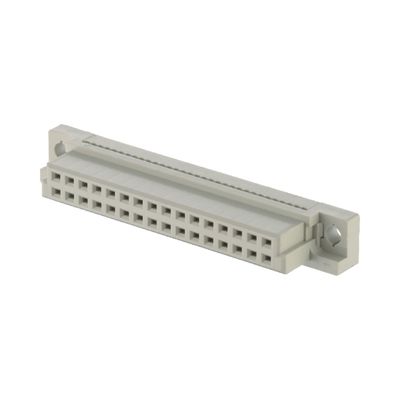

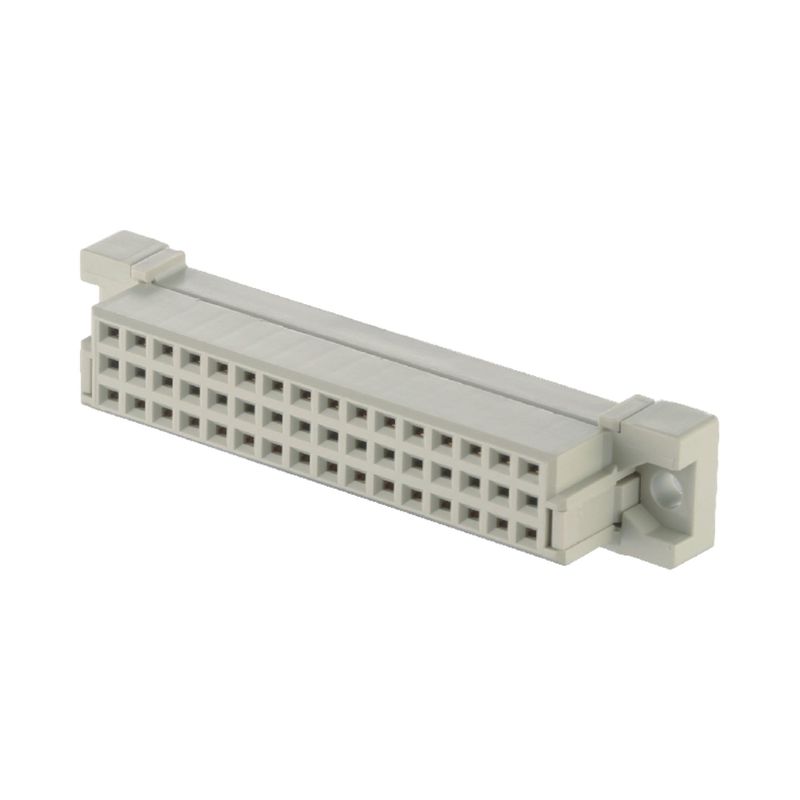

2.54mm 32 Pin Din41612 Connector IDC Type Female Pins Through Hole 3 Rows

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS
Model Number:	3812-332FSXXNA01
Document:	3812-332FSXXNA01.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.40 - $0.45/pieces
Packaging Details:	Tray/Tube
Delivery Time:	10-15 Day
Payment Terms:	T/T,Paypal
Supply Ability:	100000kpcs

Contact Now

Detailed Product Description

Type:	DIN	Application:	PCB
Gender:	Female	Product Name:	Din 41612 Connector
Contact Material:	Brass	Rated Current:	3AMP
Contact Resistance:	20mΩ	Plated:	Gold Palted(1U")(can Customized)
Packing:	Tray	Withstand Voltage:	1000V AC/Minute
Size:	Customs	Pin:	32,48,64,96 Pin
Color:	Gray,Black
Highlight:	32 Pin Din41612 Connector , Din41612 Connector IDC , 2.54mm Pitch Connector 3 Rows

2.54mm 32Pin Din41612 Connector IDC Type Female Pins Through Hole 3 Rows

Product Name	Din 41612 Connector
Positions	32-64P
Row	2,3 row
Current Rating	3.0AMP
Contact Resistance	30mΩ Max
Withstand Voltage	1000V AC/DC
Insulation Resistance	1000mΩ
Operation Temperature	﹣55℃ to +105℃
Contact Material	Phosphor Bronze
Contact Plating	Au And Sn over Ni
Fixing Material	Phosphor Bronze
Fixing Plating	Sn over Ni
Housing Material	PBT/PA6T(UL94V-0)

2.54mm 32 Pin Din41612 Connector IDC Type Female Pins Through Hole 3 Rows 0

2.54mm DIN 41612 Connector 2 Row 64Pin Right Angle dip Male Phosphor Bronze 1 Drawing:3812-332FSXXNA01.pdf

Item name: DIN 41612 Connector

1. The product precision and reliable performance.

2. Material: Plastic PBT and PA6T, terminal material: copper alloy.

3. DIN 41612 connectors with five rows(a, b, c,d,e) of contacts on 2.54mm square grid are available in wire-wrap or solder tail type terminations. 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin 96pin and 160pin are available.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

Shipping:

We offer various shipping options to meet our customers' needs. Standard shipping is available for domestic and international orders, and expedited shipping is available for urgent orders. Our shipping rates are calculated based on the weight and destination of the package.
