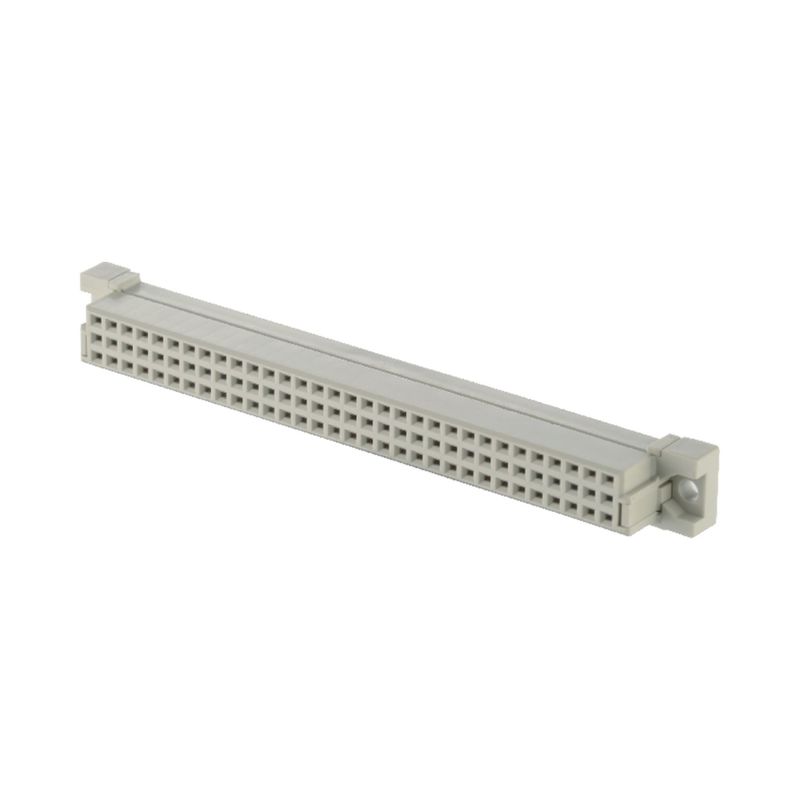

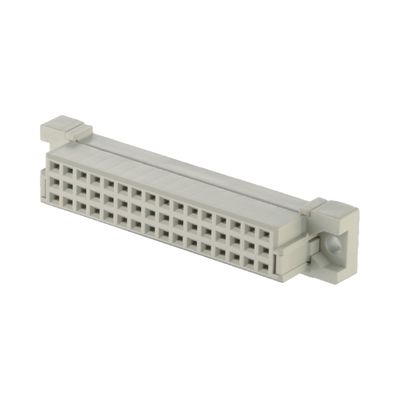

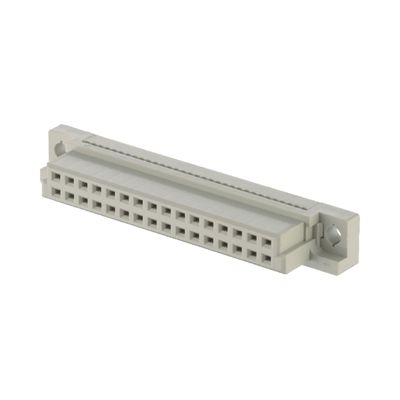

Din41612 IDC Connector Female 64 Pins Through Hole 2.54mm Pin Connector

Din41612 IDC Connector Female 64 Pins Through Hole 2.54mm Pin Connector

  • Din41612 IDC Connector Female 64 Pins Through Hole 2.54mm Pin Connector
  • Din41612 IDC Connector Female 64 Pins Through Hole 2.54mm Pin Connector
  • Din41612 IDC Connector Female 64 Pins Through Hole 2.54mm Pin Connector
  • Din41612 IDC Connector Female 64 Pins Through Hole 2.54mm Pin Connector
Din41612 IDC Connector Female 64 Pins Through Hole 2.54mm Pin Connector
Product Details:
Place of Origin: China
Brand Name: HONSHI
Certification: ROHS/SGS
Model Number: 3812-364FSXXNA01
Document: 3812-364FSXXNA01.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $0.45 - $0.55/pieces
Packaging Details: Tray/Tube
Delivery Time: 10-15 Day
Payment Terms: T/T,Paypal
Supply Ability: 100000kpcs
Contact Now
Detailed Product Description
Type: DIN Application: PCB
Gender: Female Product Name: Din 41612 Connector
Contact Material: Brass Rated Current: 3AMP
Contact Resistance: 20mΩ Plated: Gold Palted(1U")(can Customized)
Packing: Tray Withstand Voltage: 1000V AC/Minute
Size: Customs Pin: 32,48,64,96 Pin
Color: Gray,Black
Highlight:

IDC Connector Female 64 Pins

,

Din41612 2.54mm IDC Connector

,

Din41612 2.54mm IDC Connector

Din41612 Connector IDC Type Female 64 Pins Through Hole 2.54mm Pin Connector



Product Name Din 41612 Connector
Positions 32-64P
Row 2,3 row
Current Rating 3.0AMP
Contact Resistance 30mΩ Max
Withstand Voltage 1000V AC/DC
Insulation Resistance 1000mΩ
Operation Temperature ﹣55℃ to +105℃
Contact Material Phosphor Bronze
Contact Plating Au And Sn over Ni
Fixing Material Phosphor Bronze
Fixing Plating Sn over Ni
Housing Material PBT/PA6T(UL94V-0)



Din41612 IDC Connector Female 64 Pins Through Hole 2.54mm Pin Connector 0



2.54mm DIN 41612 Connector 2 Row 64Pin Right Angle dip Male Phosphor Bronze 1 Drawing:3812-364FSXXNA01.pdf





Item name: DIN 41612 Connector

1. The product precision and reliable performance.
2. Material: Plastic PBT and PA6T, terminal material: copper alloy.
3. DIN 41612 connectors with five rows(a, b, c,d,e) of contacts on 2.54mm square grid are available in wire-wrap or solder tail type terminations. 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin 96pin and 160pin are available.



Service idea:



1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.



Shipping:

We offer various shipping options to meet our customers' needs. Standard shipping is available for domestic and international orders, and expedited shipping is available for urgent orders. Our shipping rates are calculated based on the weight and destination of the package.
