Machined Female Header Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated

Machined Female Header Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated

  • Machined Female Header Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated
  • Machined Female Header Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated
  • Machined Female Header Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated
  • Machined Female Header Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated
Machined Female Header Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated
Product Details:
Place of Origin: Guangdong, China
Brand Name: HONSHI
Certification: ISO9001/ISO14001/CE/ROHS/REACH
Model Number: 820-XXXXXXXXS001
Document: 820-14094XXS001-9.4.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: Negotiaiton
Packaging Details: PE Bag,Tray,Reel Packaging
Delivery Time: 15~25Day
Payment Terms: T/T,Paypal
Supply Ability: 1000000pcs for month
Contact Now
Detailed Product Description
Type: F, OEM Application: Automotive, Heavy Industry, Water Treatment, Retail Industry
Gender: Male Product Name: Machine Pins
Material: Copper Sample: Free Samples(within 10pcs)
Packing: PE.Bag/Tape&Reel Certificate: ISO9001/CE/ROHS/REACH/MSDS
Size: Customizesd Size Process: Automatic Lathe
Plating: Gold Plating 3-10u"
Highlight:

Machined Female Header Pin

,

Female Header Pin Tin Plated

Machined Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated PE Bag packing

Product Properties
Part Number: 820-114094XXS001
Product Description Custom CNC Machined Dowel Hollow Female Insert Polished Brass Pins
Material:

Pin (outer sleeve) : Brass,

Clip (contact6 finger):Beryllium copper, heat treated

Plating (Outer sleeve):Tin plated :1.25μm/50μ"nickel,

Plating (contact) : 1.25μm/50μ"nickel, gold flash or Tin plating

Size Customized Size
Plating(outer sleeve): Gold plated:1.25u"m/50u"nickel,full gold
Application PCB,AV equipment,medical equipment,military communication,aerospace,phone watch electronic etc.
Samples Lead Time Free samples,customized samples 5-10Working days
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ .

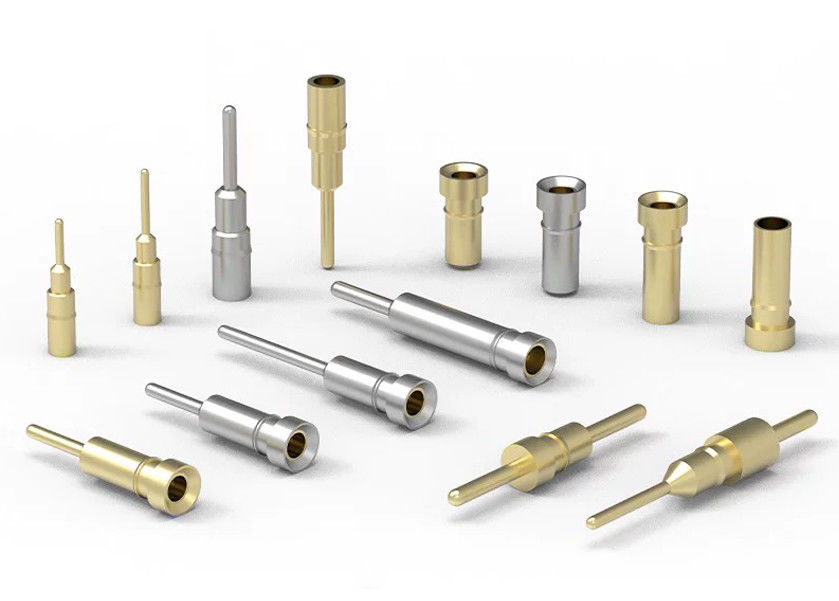

Machined Female Header Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated 0

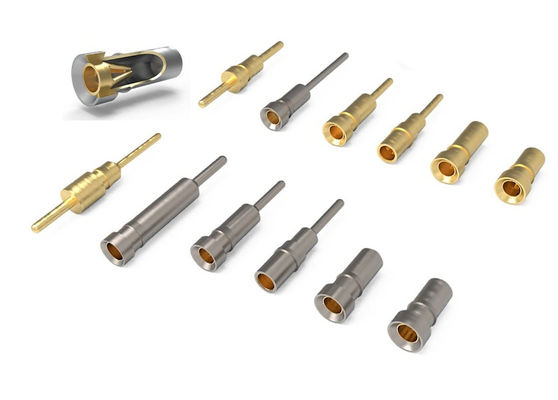

Machined Female Header Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated 1Drawing:820-14094XXS001-9.4.pdf



Machined Connector Pins

Circular hole pin is a common electronic connection device, usually made of metal material, with a row of small circular holes, mainly used for connecting, plugging, positioning, fixing, assembling, expanding, heat dissipation, and protection of electronic devices.





Main purpose



1. Connecting electronic devices: The machined pin is inserted into the circular hole on the circuit board to achieve connection between the circuit board and other electronic devices, transmitting signals and power.
2. Plug and unplug connection: The machined pin has the characteristic of being detachable, which facilitates the insertion and removal of electronic components and is suitable for occasions that require frequent replacement or debugging.
3. Positioning and fixing: In the assembly and manufacturing process of electronic devices, machined pin are used to position and fix electronic components, ensuring accurate and error free positioning.
4. Combination and expansion: machined pins arrangement can connect multiple electronic components together to form a complete circuit system, and expand functions and interfaces through different specifications of needle arrangement.
5. Heat dissipation and protection: Circular hole needles can be used as thermal conductive materials to connect electronic components with heat sinks, accelerating heat conduction and dissipation; At the same time, it can also be used for external protection of equipment.

Machined Connector Pins is a common connecting device widely used in various fields such as electronic equipment, communication equipment, automotive electronics, medical equipment, etc. Its advantages lie in its reliable connection, wide applicability, flexibility, and easy installation.

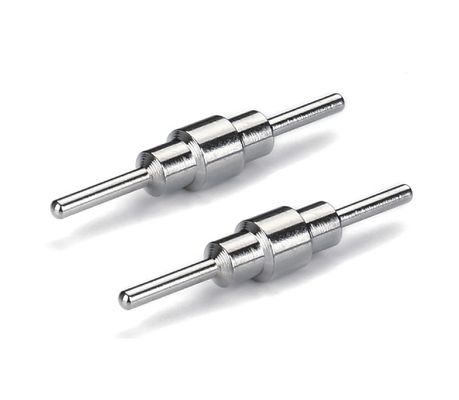

Machined Female Header Pin Dia1.48xL9.40 Clip Contact 4/6 Finger Tin Plated 2
