Name: Custom SMT SMD Pogo Pins with 10 Cycle Life for DIA2.00mm Pogo Pin Connectors
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: A20XXXXXSVX01
Price: 499.01 USD
Availability: InStock

Home Products POGO Pin Connector

Custom SMT SMD Pogo Pins with 10 Cycle Life for DIA2.00mm Pogo Pin Connectors

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HONSHI
Certification:	ISO9001/ISO14001/CE/ROHS/REACH
Model Number:	A20XXXXXSVX01
Document:	POGO PIN-Product selection ...24.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	Negotiates
Packaging Details:	PE Bag,Tube,Reel Packaging
Delivery Time:	15~25Day

Contact Now

Detailed Product Description

Specification:	Pogo Pins	Type:	Flat Bottom Type, Plug Plate Type, Bending Type, Double Needle Shaft, Thread Type, Welding Wire Type, Side Hole Type
Material:	Brass(C3604,C6801)	Spring:	SUS304
Size:	Depends On Customer Requirements	Plated:	Gold Palted(3U")(can Customized)
Rated Current:	1A/5A/12V(can Customized)	Cycle Life:	10,000 Times
Salt Fog:	72H	Sample Lead Time:	Inventory Simple 2-3day /customizd Simple3-5day
Applications:	PCB,power ,charging Equipment
Highlight:	DIA2.00mm Pogo Pin Connectors , Custom SMT SMD Pogo Pins , 10 Cycle Life Pogo Pins

Custom SMT SMD Pogo Pins with 10 Cycle Life for DIA2.00mm Pogo Pin Connectors

Specific material electrical parameters
Electrical Performance:		Mechanical Performance:
Rated Current:	1.5AMP	Spring force:	100g±20g or Customized
Contact Resistance:	50mΩ Max	Work Stroke:	Customized
Rated Voltage:	DC 12V	Maximum Working stroke:	Customized
Operation Temperature:	-40°c to +105°c	Mechanical Life	100,000 cycles
Resistance To Solder Heat:	260℃±5℃ 20s±2s
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ.

Custom SMT SMD Pogo Pins with 10 Cycle Life for DIA2.00mm Pogo Pin Connectors 0

POGO PIN:Product selection Catalogs.pdf

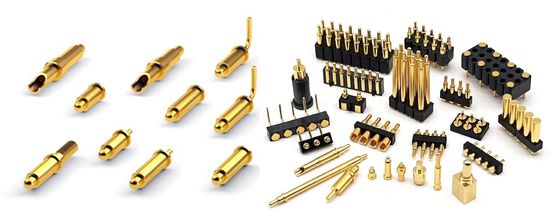

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,

side hole type, etc.

The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.

Plating selection: regular gold plating, nickel plating, etc.

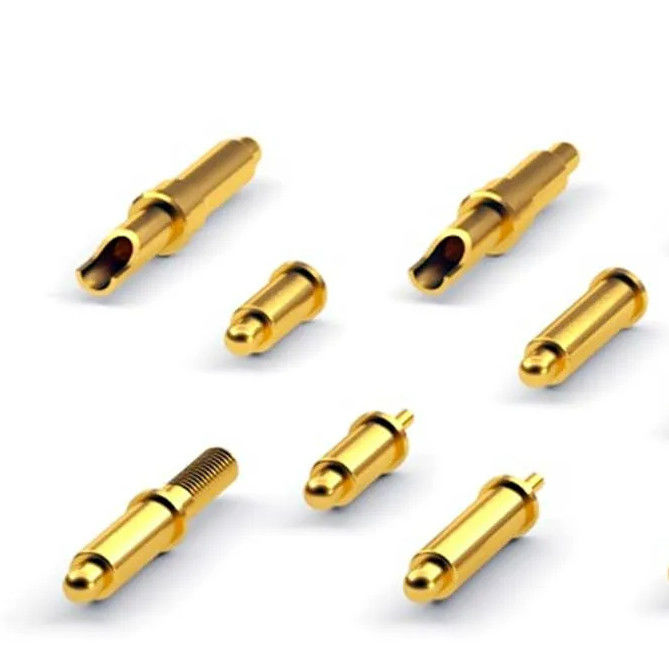

Thread Type Pogo Pin Connector Brass Dia8.0 Spring Loaded Pogo Pin 2

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

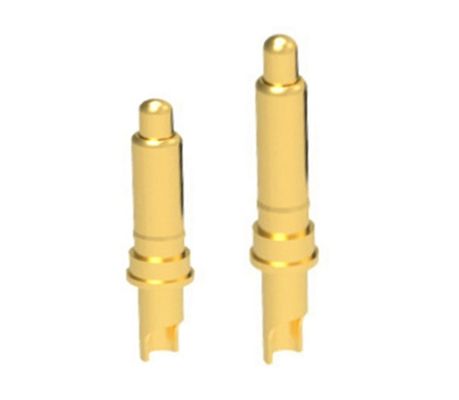

Thread Type Pogo Pin Connector Brass Dia8.0 Spring Loaded Pogo Pin 4
