Name: 2x32P 2.54mm Din 41612 Connector 2 Row 64 Pin Male Straight Through Hole Dip
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: 3810-264MSXXNA01
Price: 0.15 USD
Availability: InStock

Home Products Din 41612 Connector

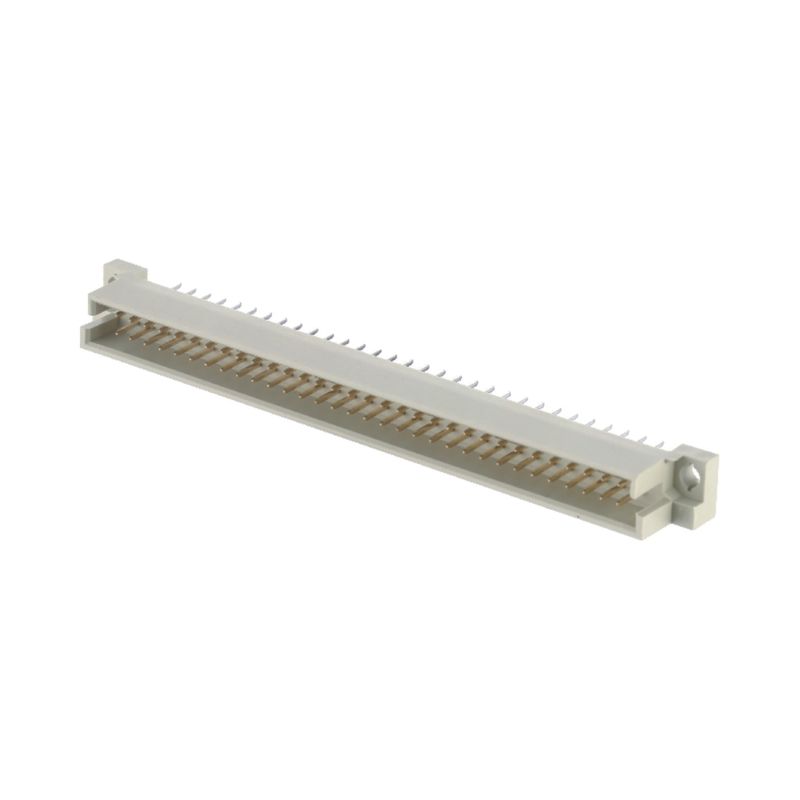

2x32P 2.54mm Din 41612 Connector 2 Row 64 Pin Male Straight Through Hole Dip

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS/UL
Model Number:	3810-264MSXXNA01
Document:	3810-2XXMSXXNA01.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.15 - $0.35/pieces
Packaging Details:	Tray/Tube
Delivery Time:	10-15 Day
Payment Terms:	T/T,Paypal
Supply Ability:	100000kpcs

Contact Now

Detailed Product Description

Type:	DIN	Application:	PCB
Gender:	Male	Product Name:	Din 41612 Connector
Contact Material:	Brass	Rated Current:	3AMP
Contact Resistance:	20mΩ	Plated:	Gold Palted(1U")(can Customized)
Packing:	Tray	Withstand Voltage:	1000V AC/Minute
Size:	Customs	Pin:	10 - 120 Pin
Color:	Gray,Black
Highlight:	2.54mm Din 41612 Connector , Din 41612 Connector 2 Row , 64 Pin Through Hole Connector

2x32P 2.54mm Din 41612 Connector 2 Row 64Pin Male Pins Straight Through Hole Dip

Product Name	Din 41612 Connector
Positions	10-160P
Row	2,3,4,5row
Current Rating	3.0AMP
Contact Resistance	30mΩ Max
Withstand Voltage	1000V AC/DC
Insulation Resistance	1000mΩ
Operation Temperature	﹣55℃ to +105℃
Contact Material	Phosphor Bronze
Contact Plating	Au And Sn over Ni
Fixing Material	Phosphor Bronze
Fixing Plating	Sn over Ni
Housing Material	PBT/PA6T(UL94V-0)

2x32P 2.54mm Din 41612 Connector 2 Row 64 Pin Male Straight Through Hole Dip 0

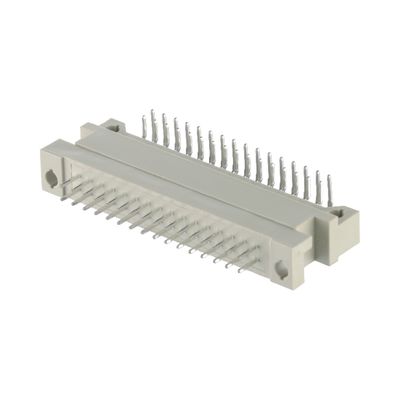

2.54mm DIN 41612 Connector 2 Row 64Pin Right Angle dip Male Phosphor Bronze 1 Drawing:3810-2XXMRXXNA01.pdf

Item name: DIN 41612 Connector

1. The product precision and reliable performance.

2. Material: Plastic PBT and PA6T, terminal material: copper alloy.

3. DIN 41612 connectors with five rows(a, b, c,d,e) of contacts on 2.54mm square grid are available in wire-wrap or solder tail type terminations. 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin 96pin and 160pin are available.
