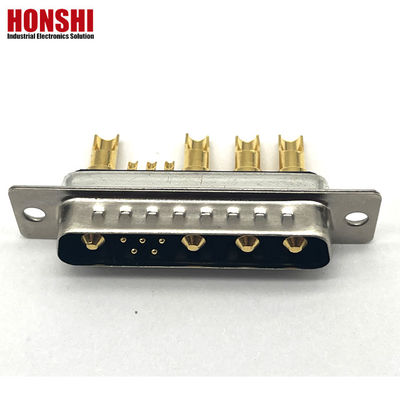

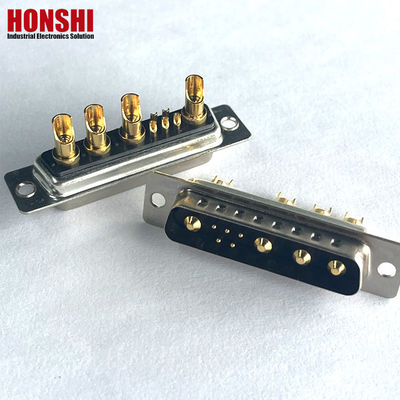

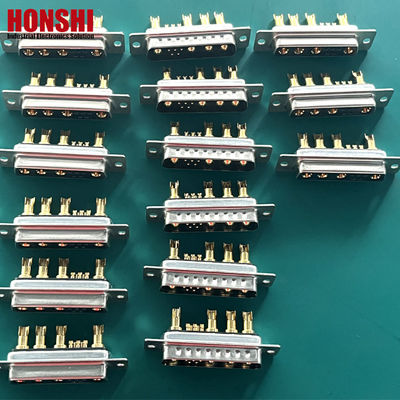

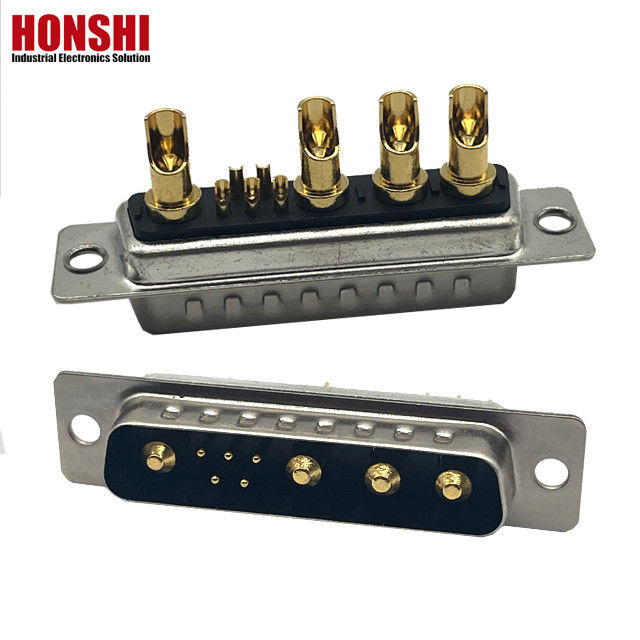

Name: 9w4 Solder Wire Communication D Sub Connector Gold Plated Male Mixed High Current 5+4 Core
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: 6235-01M9W4S0B0X
Price: 1.38 USD
Availability: InStock

Home Products Wire To Board Connector

9w4 Solder Wire Communication D Sub Connector Gold Plated Male Mixed High Current 5+4 Core

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS
Model Number:	6235-01M9W4S0B0X

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$1.38 - $1.88/pieces
Packaging Details:	Tray/Pe bag
Delivery Time:	10-15 Day
Payment Terms:	T/T,Paypal
Supply Ability:	1000000 Box/Boxes per Week

Contact Now

Detailed Product Description

Type:	DIN	Application:	PCB
Gender:	Female/Male	Product Name:	Dsub Connector
Contact Material:	Phosphor Bronze	Rated Current:	10/20/40AMP
Contact Resistance:	20mΩ	Plated:	Gold Palted(1U")(can Customized)
Packing:	Tube/Tray	Withstand Voltage:	1000V AC/Minute
Pin:	9 Pin	Color:	Black/Blue
Certificate:	ISO9001/CE/ROHS/REACH/MSDS
Highlight:	9W4 D-Sub Mixed Contact Connectors , D-Sub Mixed Contact Connectors

D-SUB 9W4 Male Connector Gold Pin Solder Wire Type High Quality Connectors 10A 20A 30A 40A

Product Name	D sub Connector
Currenr Rating	10/20/30/40AMP
Contact Resistance	20mΩ Max
Withstand Voltage	500V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣55℃ to +105℃
Contact Material	Phosphor Bronze/Brass
Contact Plating	Au Or Sn over Ni
Insulator Material	PBT+30%GF UL94V-0
Shell	Cold Roller Steel,Ni Or Sn Plated
Nut	Brass,Sn Over Ni Plated

9w4 Solder Wire Communication D Sub Connector Gold Plated Male Mixed High Current 5+4 Core 0

Product name: Dsub Connector:

1. Features: the use of a wide range of environmental protection fireproof antioxidant electrical conductivity and long service life force is strong.

2.Material: PBT (green, black, white) UL94V-0 contact body material: brass (C3604)

3.Scope of application: used for connecting a computer, communication, medical equipment, wire and cable, aviation, digital, machinery and equipment, game consoles and other integrated circuit package pins and printed circuit board.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.

Shipping:

The customized wire cable will be shipped via a reliable courier service with tracking information provided to the customer. Shipping times and costs will vary depending on the destination, but we strive to ensure timely delivery and affordable shipping rates.

Tag:

Contact Person: Mr. Lynn

Tel: +86 18086485773

Fax: 86-0769-81353397
