Name: SM SCSI Wire To Board Connector 1.27mm 26 Pin Male Connector MDR SCSI Connector
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: 6810-M26SXXNX01
Price: 0.50 USD
Availability: InStock

Home Products Wire To Board Connector

SM SCSI Wire To Board Connector 1.27mm 26 Pin Male Connector MDR SCSI Connector

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS
Model Number:	6810-M26SXXNX01
Document:	6810-MXXSXXNX01.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.50 - $0.65/pieces
Packaging Details:	Tray packing
Delivery Time:	10-15 Day
Payment Terms:	T/T,Paypal
Supply Ability:	1000000 Box/Boxes per Week

Contact Now

Detailed Product Description

Type:	RGB	Application:	PCB
Gender:	Male	Product Name:	SCSI Connector
Contact Material:	Phosphorous Bronze	Rated Current:	1.0AMP
Contact Resistance:	35mΩ	Plated:	Gold Palted(1U")(can Customized)
Packing:	Tray	Sample:	Support Samples
Voltage Rating:	40V AC	Wire Adaptation:	24,26,28,30AWG
Withstand Voltage:	500V AC/Minute
Highlight:	SCSI Wire To Board Connector , Wire To Board Connector 1.27mm , SCSI 26 Pin Male Connector

26pin SM SCSI 1.27mm Male Connector MDR SCSI Connector For Cable 30AWG

Product Name	SCSI Connector
Positions	14,20,26,36,50,68,100P
Current Rating	1.0AMP
Contact Resistance	35 Milliohm Max
Insulation Resistance	500 Milliohm Min
Withstand Voltage	500V AC/Minute
Operation Temperature	-65℃ to + 125 ℃
Contact Material	Phosphor Bronze
Contact Plating	Au or Sn over Ni
Insulator Material	Polyester(ul94v-0)
Standard	PBT Black

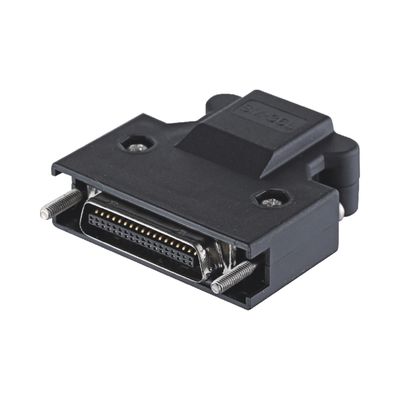

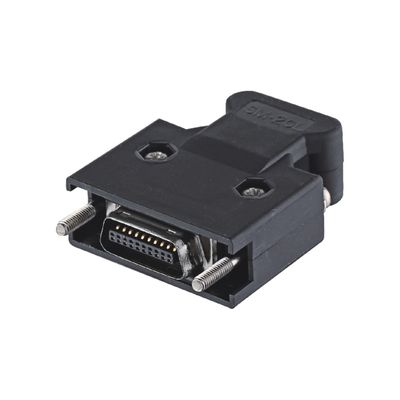

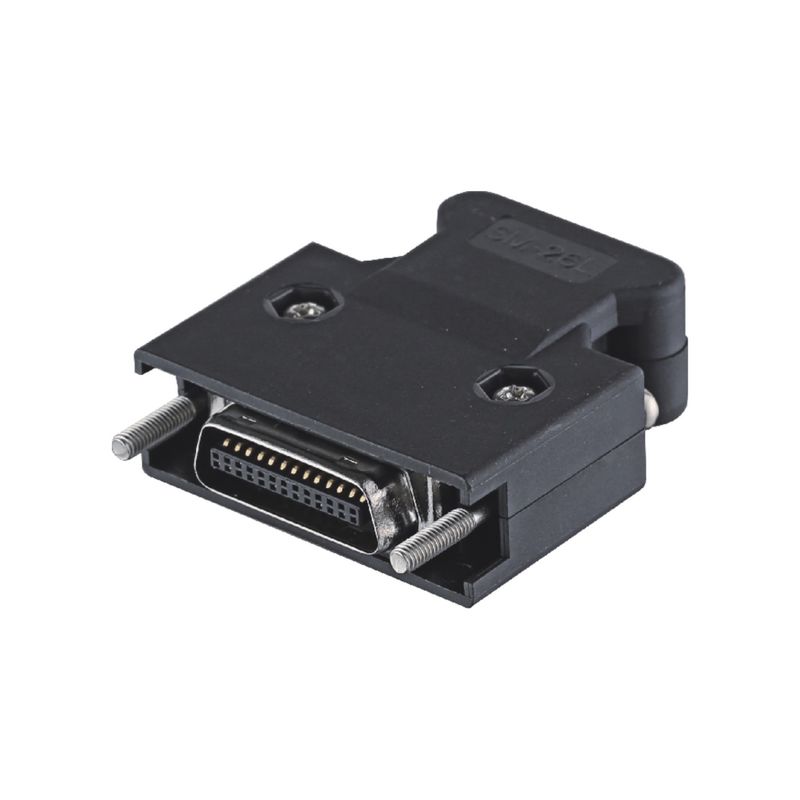

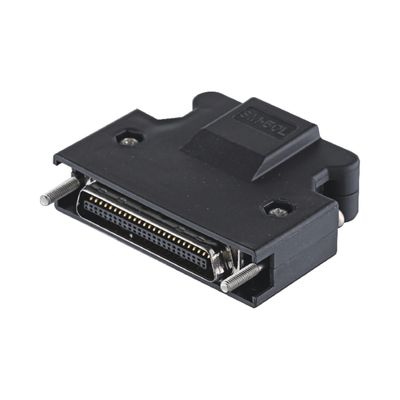

SM SCSI Wire To Board Connector 1.27mm 26 Pin Male Connector MDR SCSI Connector 0

SM SCSI Wire To Board Connector 1.27mm 26 Pin Male Connector MDR SCSI Connector 1 Drawing:6810-MXXSXXNX01.pdf

Product name: SCSI Connector

SCSI is an interface that connects hosts and peripheral devices, supporting a variety of devices including disk drives, tape drives, optical drives, scanners and more. It is operated by the SCSI controller for data operations, SCSI 50 68 100P controller equivalent to a small CPU, with its own command set and cache.

Mainly in electronic products and electrical equipment to provide convenient electrical plug-in connection, widely used in fields such as smart wearables, mobile communications, digital cameras, automobiles, medical devices, etc

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.

Shipping:

The customized wire cable will be shipped via a reliable courier service with tracking information provided to the customer. Shipping times and costs will vary depending on the destination, but we strive to ensure timely delivery and affordable shipping rates.

Tag:

Contact Person: Mr. Lynn

Tel: +86 18086485773

Fax: 86-0769-81353397
