Name: SM-6P Male CN3 Server I / O Connector IEEE 1394 Female Connector Solder Type
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: 6820-M06SXXNX01
Price: 0.50 USD
Availability: InStock

Home Products Wire To Board Connector

SM-6P Male CN3 Server I / O Connector IEEE 1394 Female Connector Solder Type

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HONSHI
Certification:	ROHS/SGS
Model Number:	6820-M06SXXNX01
Document:	6820-M06SXXNX01 6P.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$0.50 - $1.20/pieces
Packaging Details:	Tray/Pe bag
Delivery Time:	10-15 Day
Payment Terms:	T/T,Paypal
Supply Ability:	100000kpcs

Contact Now

Detailed Product Description

Type:	RGB	Application:	PCB
Gender:	Female	Product Name:	IEEE1394 Connector
Contact Material:	Phosphorous Bronze	Rated Current:	1.0AMP
Contact Resistance:	20mΩ	Plated:	Gold Palted(1U")(can Customized)
Packing:	Tray	Sample:	Support Samples
Voltage Rating:	40V AC	Wire Adaptation:	24,26,28,30AWG
Withstand Voltage:	500V AC/Minute
Highlight:	CN3 Connector Solder Type , Server Connector IEEE 1394

SM-6P Male CN3 Server I / O Connector IEEE 1394 Female Connector Solder Type

Product Name	IEEE 1394 Connector
Positions	6P,10P
Current Rating	1.0AMP
Contact Resistance	35 Milliohm Max
Insulation Resistance	500 Milliohm Min
Withstand Voltage	500V AC/Minute
Operation Temperature	-65℃ to + 125 ℃
Contact Material	Phosphor Bronze
Contact Plating	Au or Sn over Ni
Insulator Material	Polyester(ul94v-0)
Standard	PBT/ABS Black

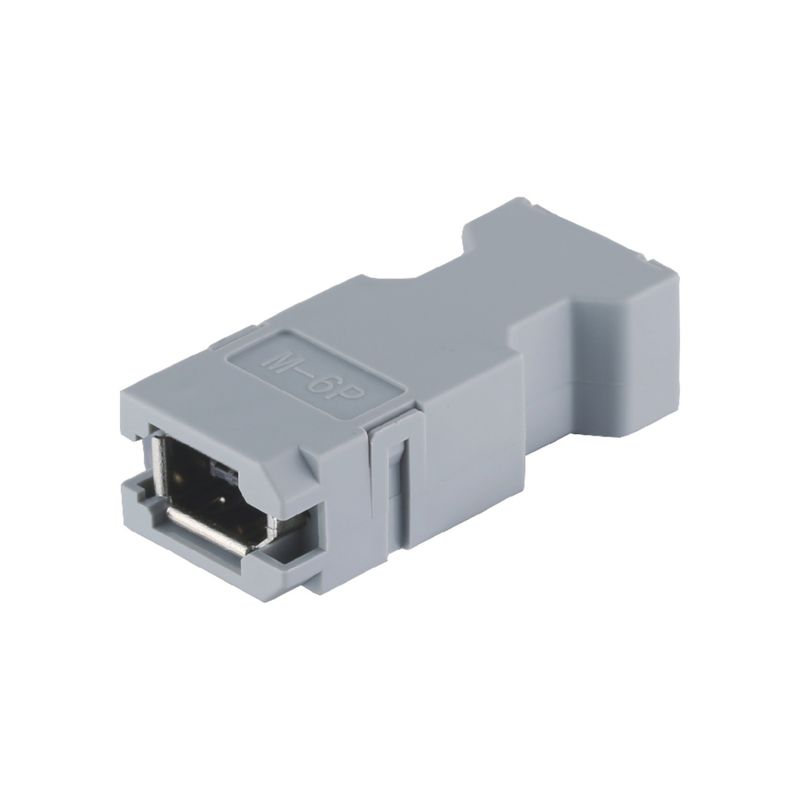

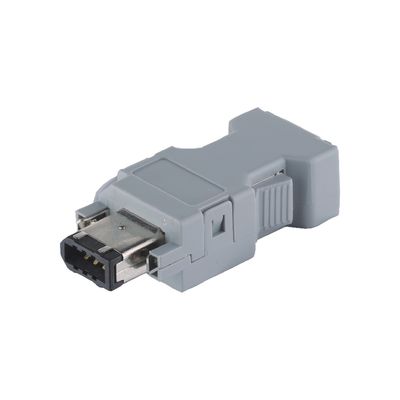

SM-6P Male CN3 Server I / O Connector IEEE 1394 Female Connector Solder Type 0

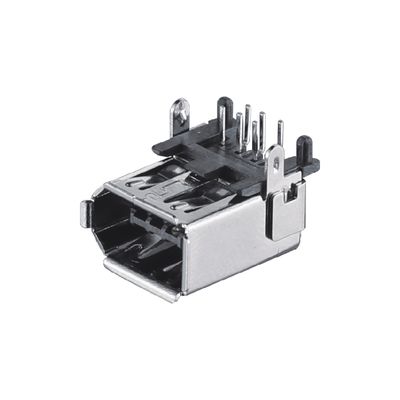

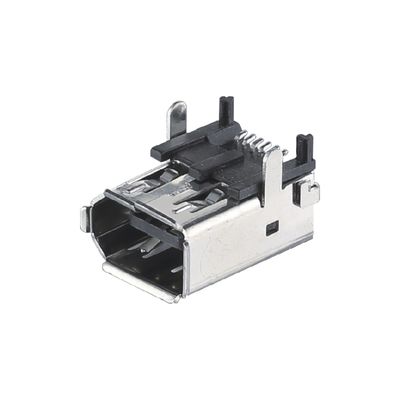

SM-6P Male CN3 Server I / O Connector IEEE 1394 Female Connector Solder Type 1 Drawing:6820-M06SXXNX01 6P.pdf

Product name: IEEE 1394 Connector

1. Product features: Its characteristic is fast transmission speed, suitable for transmitting digital image signals

2. Product material: PA6T/PA9T/LCP/PBT/ABS, plating surface treatment: gold-plated or tin plating

3. Widely used in fields such as smart wearables, mobile communications, digital cameras, automobiles, medical devices, etc

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.

Shipping:

The customized wire cable will be shipped via a reliable courier service with tracking information provided to the customer. Shipping times and costs will vary depending on the destination, but we strive to ensure timely delivery and affordable shipping rates.

Tag:

Contact Person: Mr. Lynn

Tel: +86 18086485773

Fax: 86-0769-81353397
