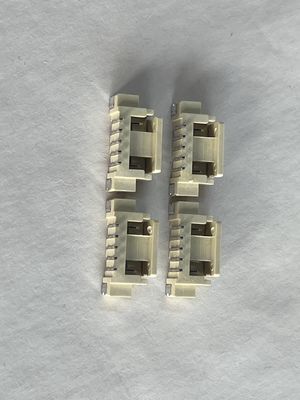

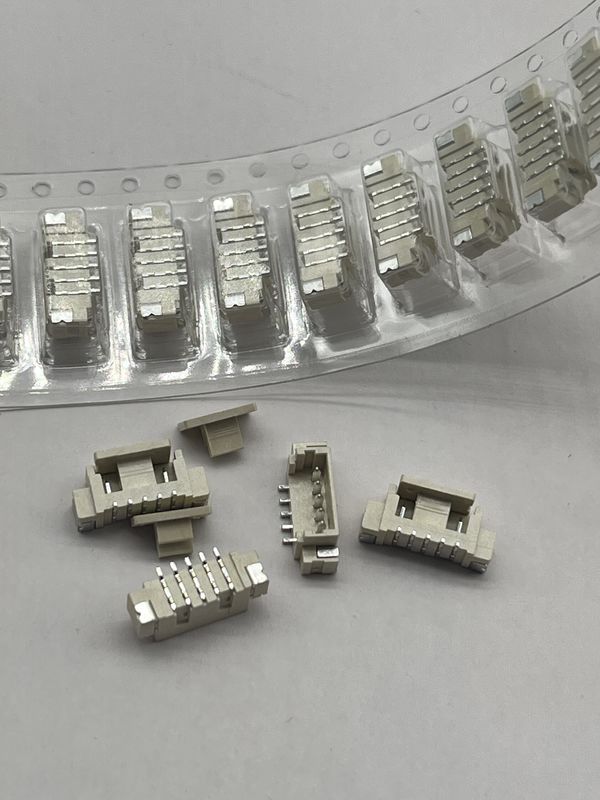

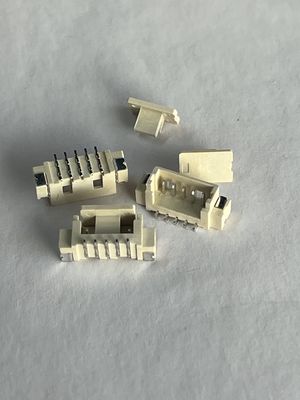

Name: 1.25mm Pitch MH1.25 Series Smd Wire To Board Connector Replace Molex Connector
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: HS1251WM-NP
Price: 0.01 USD
Availability: InStock

Home Products Wire To Board Connector

1.25mm Pitch MH1.25 Series Smd Wire To Board Connector Replace Molex Connector

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HONSHI
Certification:	ROHS/SGS
Model Number:	HS1251WM-NP

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.01 - $0.03/pieces
Packaging Details:	Tray/Tube/Reel
Delivery Time:	7-10 Day
Payment Terms:	T/T,Paypal
Supply Ability:	1000000 Box/Boxes per Week

Contact Now

Detailed Product Description

Type:	DIN	Application:	PCB
Gender:	Male	Product Name:	Wafer/Housing/Terminal
Contact Material:	Brass/phosphor Bronze	Certificate:	ISO9001/CE/ROHS/REACH/MSDS
Color:	Customer	Pin:	2/3/4/5/6/8/12pin
Material:	PA66/PBT/Nylon	Current Rating:	1.5A AC
Voltage Rating:	250V DC/AC	Plating:	Tin/gold Flash/5u''gold/10u''gold/15u''gold/30u''gold
Packing:	Reel Packing
Highlight:	Molex smd wire to board connector , 1.25mm Smd Wire To Board Connector , Smd Wire To Board Connector Replace

1.25mm Pitch MH1.25 Series Smd Wire To Board Connector Replace Molex Connector

Product Name	Wafer Housing Terminal
Pitch	1.25mm
Rated Current	1.5AMP
Contact Resistance	30mΩ Max
Withstand Voltage	500V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣25℃ to +85℃
Pin Material	Brass
Contact Plating	Sn over Ni
Insulator Material	Polyester(UL94V-0)
Standard	PA66/PA6T/PBT

1.25mm Pitch MH1.25 Series Smd Wire To Board Connector Replace Molex Connector 0

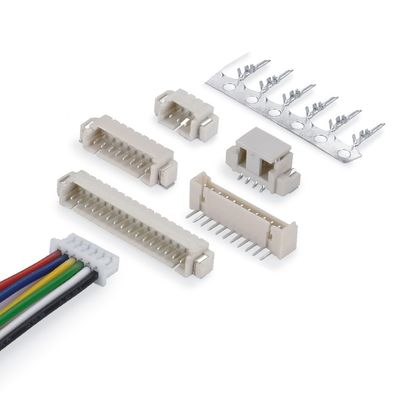

Product name: Wafer / Housing / Terminal Connector

1. product features: it makes the design and production process more convenient, more flexible, reduce production and maintenance costs, easy maintenance, easy to upgrade, improve the flexibility of the design

2. Product material: PA66/PA9T/LCP/PBT plating surface treatment: gold or tin plating

3.A pplication scope: it is mainly used in communication and electronic equipment and data by welding on the PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need to be welded on a PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.

Shipping:

The customized wire cable will be shipped via a reliable courier service with tracking information provided to the customer. Shipping times and costs will vary depending on the destination, but we strive to ensure timely delivery and affordable shipping rates.

Tag:

Contact Person: Mr. Lynn

Tel: +86 18086485773

Fax: 86-0769-81353397
