Name: 3V3 30A Solder Type Male D Sub Connector With Brass Gold Plated Contact Material
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: DS-F3V3XXBXX
Price: 0.56 USD
Availability: InStock

Home Products Wire To Board Connector

3V3 30A Solder Type Male D Sub Connector With Brass Gold Plated Contact Material

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS
Model Number:	DS-F3V3XXBXX

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.56 - $2.46/pieces
Packaging Details:	Tray/Pe bag
Delivery Time:	10-15 Day
Payment Terms:	T/T,Paypal
Supply Ability:	100000kpcs

Contact Now

Detailed Product Description

Type:	Connector	Brand:	HONSHI
Packaging:	Tray /pe Bag Packing	Description:	DB 3V3
Product Name:	3V3 D-SUB Connector	Pin Number:	2v2,3w3,5w5,7w2,13w3,17w2
Contact Material:	Brass Gold Plated	Contact Plating:	Gold 1u''(0.025um)/3u"/5u"
Current Rating:	10A,20A,30A,40A	Contact Resistance:	30MΩ Max At DC100mA
Insulator Resistance:	1000MΩ At DC 500V	Voltage:	AC 1000V For 1 Minate
Samples:	Free Samples
Highlight:	3V3 Male D Sub Connector , 30A Male D Sub Connector , Solder D Sub Connector Gold Plated

3V3 30A Solder Type Male D-Sub Connector With Brass Gold Plated Contact Material

Product Name	D sub Connector
Currenr Rating	10/20/30/40AMP
Contact Resistance	20mΩ Max
Withstand Voltage	500V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣55℃ to +105℃
Contact Material	Phosphor Bronze/Brass
Contact Plating	Au Or Sn over Ni
Insulator Material	PBT+30%GF UL94V-0
Shell	Cold Roller Steel,Ni Or Sn Plated
Nut	Brass,Sn Over Ni Plated

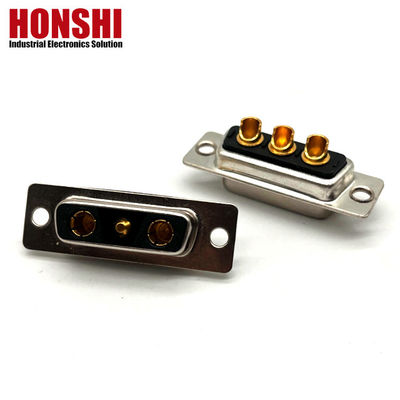

3V3 30A Solder Type Male D Sub Connector With Brass Gold Plated Contact Material 0

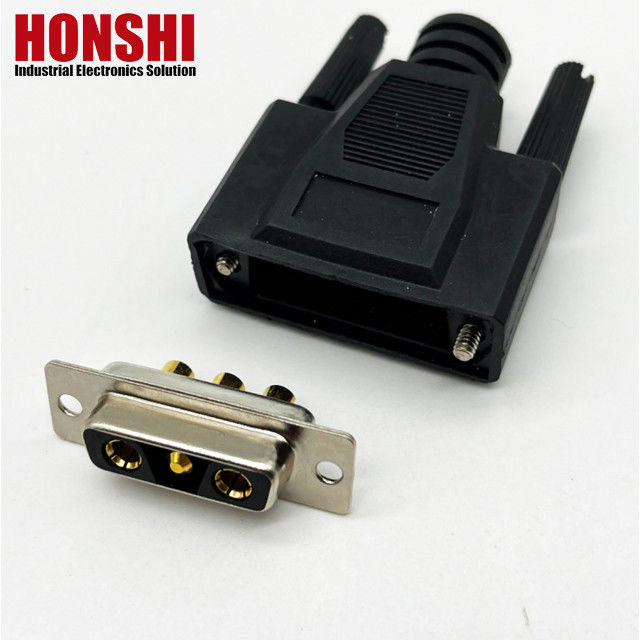

3V3 30A Solder Type Male D Sub Connector With Brass Gold Plated Contact Material 1

Product name: Dsub Connector

1. Features: the use of a wide range of environmental protection fireproof antioxidant electrical conductivity and long service life force is strong.

2.Material: PBT (green, black, white) UL94V-0 contact body material: brass (C3604)

3.Scope of application: used for connecting a computer, communication, medical equipment, wire and cable, aviation, digital, machinery and equipment, game consoles and other integrated circuit package pins and printed circuit board.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.

Shipping:

The customized wire cable will be shipped via a reliable courier service with tracking information provided to the customer. Shipping times and costs will vary depending on the destination, but we strive to ensure timely delivery and affordable shipping rates.

Tag:

Contact Person: Mr. Lynn

Tel: +86 18086485773

Fax: 86-0769-81353397
