Name: MDR PCB Straight SCSI Connector 14 20 26 36 50 Pin 68 Pin 100 Pin
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: 6810-FXXDXXNX01
Price: 2.50 USD
Availability: InStock

Home Products Wire To Board Connector

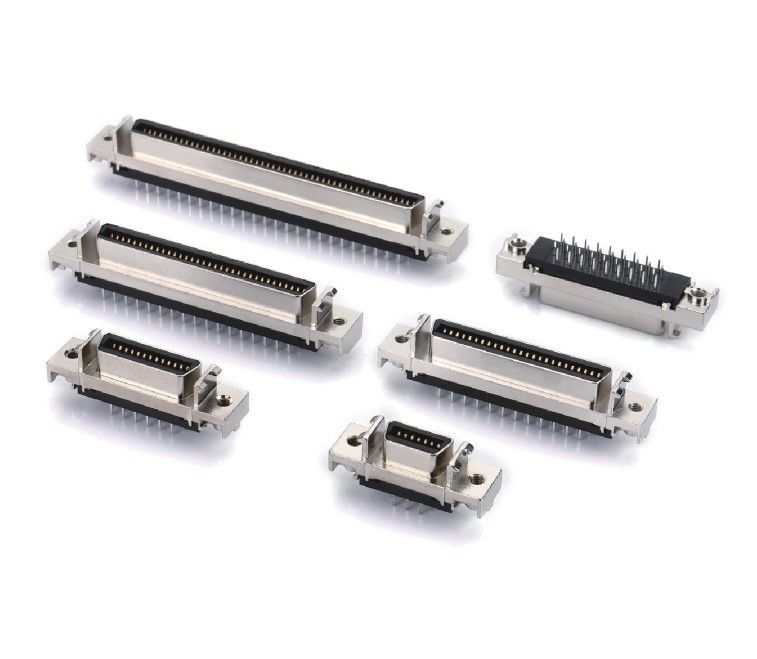

MDR PCB Straight SCSI Connector 14 20 26 36 50 Pin 68 Pin 100 Pin

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS
Model Number:	6810-FXXDXXNX01
Document:	6810-FXXDXXNX01.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$1.50 - $3.50/pieces

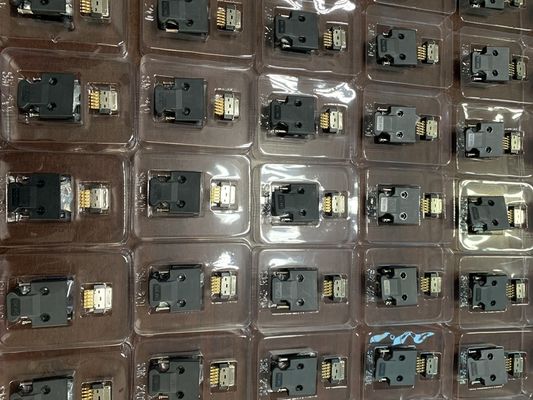

Packaging Details:	Tray/Pe bag
Delivery Time:	10-15 Day
Payment Terms:	T/T,Paypal
Supply Ability:	100000kpcs

Contact Now

Detailed Product Description

Type:	DIN	Application:	PCB
Gender:	Female, Male Famale	Housing Material:	Zinc Alloy, Copper
Product Name:	SCSI Connector	Contact Material:	Phosphore Bronze
Plating:	Gold Plating 1-10u"	Pin:	14,20,26,36,50,68,100pin
Pitch:	1.27mm	Termination:	Vertical
Insulator:	PBT Plastic	Insulator Color:	Black
Shell Material:	Zinc Alloy Nikel-plated
Highlight:	PCB 100 Pin SCSI Connector , Straight 50 Pin SCSI Connector , MDR scsi 36 pin connector

Zinc HPCN 14 20 26 36 50 68 100Pin Female Connector MDR SCSI Pitch 1.27mm

Product Name	SCSI Connector
Positions	14,20,26,36,50,68,100P
Current Rating	1.0AMP
Contact Resistance	35 Milliohm Max
Insulation Resistance	500 Milliohm Min
Withstand Voltage	500V AC/Minute
Operation Temperature	-65℃ to + 125 ℃
Contact Material	Phosphor Bronze
Contact Plating	Au or Sn over Ni
Insulator Material	Polyester(ul94v-0)
Standard	PBT Black

MDR PCB Straight SCSI Connector 14 20 26 36 50 Pin 68 Pin 100 Pin 0

MDR PCB Straight SCSI Connector 14 20 26 36 50 Pin 68 Pin 100 Pin 1 Drawing:6810-FXXDXXNX01.pdf

Product name: SCSI Connector

SCSI is an interface that connects hosts and peripheral devices, supporting a variety of devices including disk drives, tape drives, optical drives, scanners and more. It is operated by the SCSI controller for data operations, SCSI 50 68 100P controller equivalent to a small CPU, with its own command set and cache.

Mainly in electronic products and electrical equipment to provide convenient electrical plug-in connection, widely used in fields such as smart wearables, mobile communications, digital cameras, automobiles, medical devices, etc

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.

Shipping:

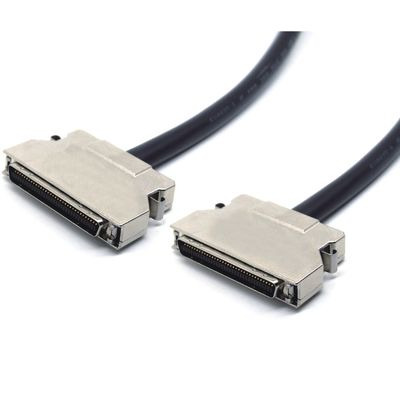

The customized wire cable will be shipped via a reliable courier service with tracking information provided to the customer. Shipping times and costs will vary depending on the destination, but we strive to ensure timely delivery and affordable shipping rates.

Tag:

Contact Person: Mr. Lynn

Tel: +86 18086485773

Fax: 86-0769-81353397
