Home ProductsPCB Connector

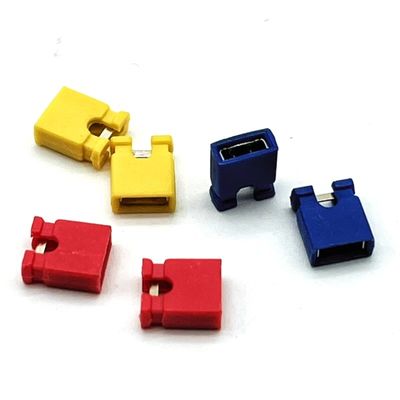

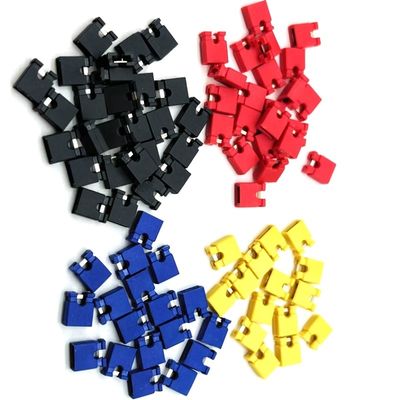

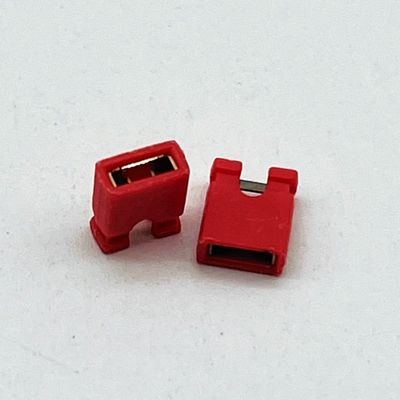

Automotive Mini Jumper Connector Board to Board Female Socket 1.27mm 2mm 2.54mm Pitch Black Red Yellow with Ni Plating

Automotive Mini Jumper Connector Board to Board Female Socket 1.27mm 2mm 2.54mm Pitch Black Red Yellow with Ni Plating

  • Automotive Mini Jumper Connector Board to Board Female Socket 1.27mm 2mm 2.54mm Pitch Black Red Yellow with Ni Plating
  • Automotive Mini Jumper Connector Board to Board Female Socket 1.27mm 2mm 2.54mm Pitch Black Red Yellow with Ni Plating
  • Automotive Mini Jumper Connector Board to Board Female Socket 1.27mm 2mm 2.54mm Pitch Black Red Yellow with Ni Plating
  • Automotive Mini Jumper Connector Board to Board Female Socket 1.27mm 2mm 2.54mm Pitch Black Red Yellow with Ni Plating
  • Automotive Mini Jumper Connector Board to Board Female Socket 1.27mm 2mm 2.54mm Pitch Black Red Yellow with Ni Plating
  • Automotive Mini Jumper Connector Board to Board Female Socket 1.27mm 2mm 2.54mm Pitch Black Red Yellow with Ni Plating
Automotive Mini Jumper Connector Board to Board Female Socket 1.27mm 2mm 2.54mm Pitch Black Red Yellow with Ni Plating
Product Details:
Place of Origin: Guangdong, China
Brand Name: HONSHI
Certification: ISO9001/ISO14001/CE/ROHS/REACH
Model Number: Mini Jumper Connector
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: Negotiaiton

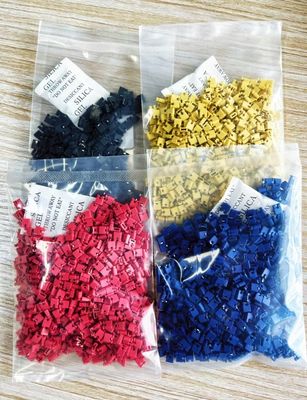

Packaging Details: PE Bag,Tube,Reel Packaging
Delivery Time: 15~25Day
Payment Terms: T/T,Paypal
Supply Ability: 1000000pcs for month
Contact Now
Detailed Product Description
Gender: Female Product Name: Mini Jumper Connector
Material: Brass Sample: Free Samples(within 10pcs)
Plating: Ni Plating(can Rated Current: 3A-5A
Pitch: 2.54 Capping: Open Form
Color: Red,Black,Yellow,Blue,White(customized) Applications: PCB,AV Equipment,medical Equipment,military Communication,aerospace,Phone Watch, Electronic
Highlight:

1.27mm Mini Jumper Connector Board

,

2mm Mini Jumper Connector Board

,

Automotive Mini Jumper Connector Board

Mini Jumper Connector board to board female socket 1.27mm 2mm 2.54mm pitch black red yellow



SPECIFICATIONS
Rated Current: 3.0AMP Contact Material: Brass
Contact Resistance: 20mΩ Max Contact Plating: Au Over Ni
Withstand Voltage: 1000V AC/DC Insulator Material: Polyester(UL94V-0)
Insulation Resistance: 1000MΩ Min Standard: PBT
Operation Temperature: ‘-40°c to +105°c Max.Processing Temp: 180°C for 30-60 seconds(200°C for 10 seconds)

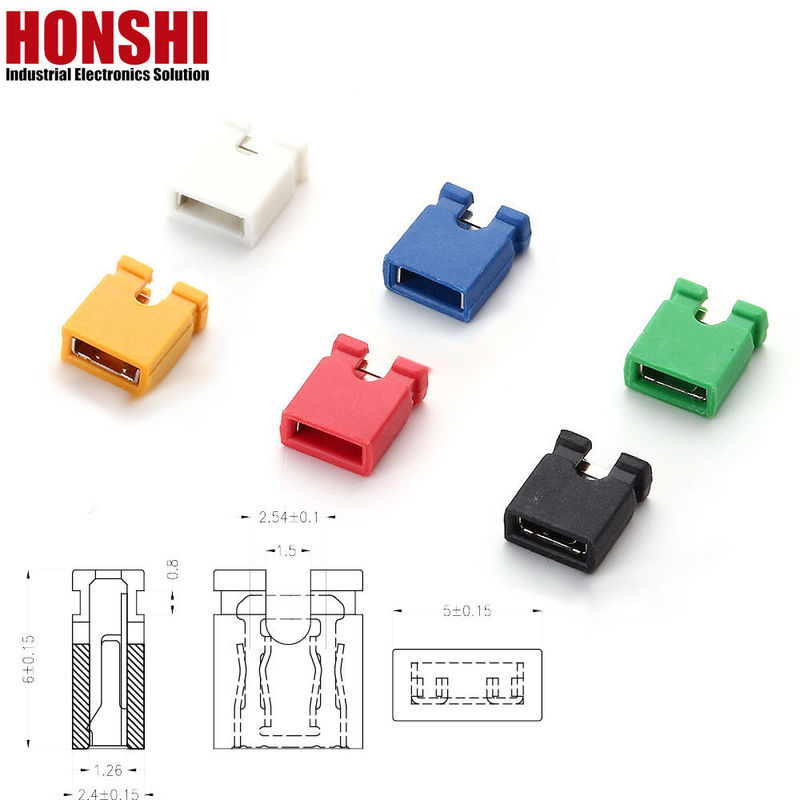

3A-5A 2.54mm Pitch Mini Jumper Hight 6.0mm Red Blue Yellow Black with Open Form Capping 1

3A-5A 2.54mm Pitch Mini Jumper Hight 6.0mm Red Blue Yellow Black with Open Form Capping 2Drawing:JC-3O6001XB01.pdf



Mini Jumper also known as jumper cap, short circuit ring

In industrial control applications, small switches called jumper caps, also known as short-circuit caps or short-circuit rings, are commonly used.

Its function is to switch the input signal type when there are many jumper pins on the motherboard, by attaching the jumper cap to the corresponding jumper pin and turning it on. Its application is more convenient and flexible than soldering with a soldering iron. A short-circuit cap can be used to achieve the function of a dip switch. Used to connect pins between peripheral modules and micro controller pins. After removing the short-circuit cap, the pins of the micro controller are not connected to any module.

3A-5A 2.54mm Pitch Mini Jumper Hight 6.0mm Red Blue Yellow Black with Open Form Capping 33A-5A 2.54mm Pitch Mini Jumper Hight 6.0mm Red Blue Yellow Black with Open Form Capping 4
