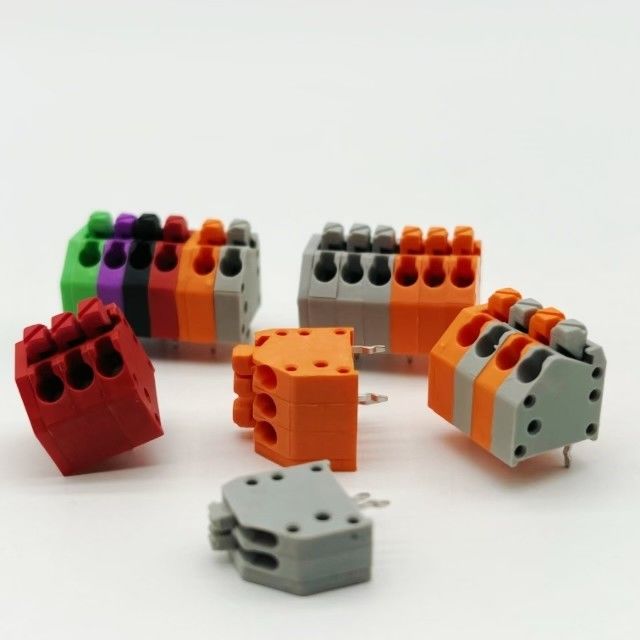

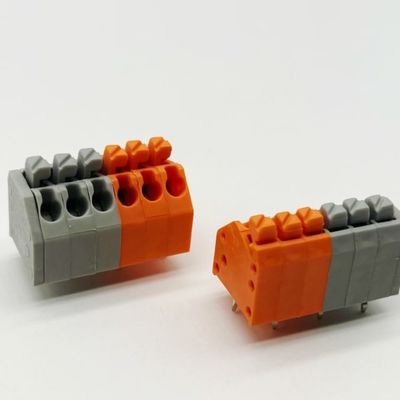

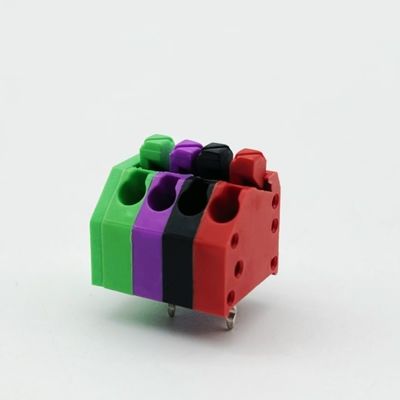

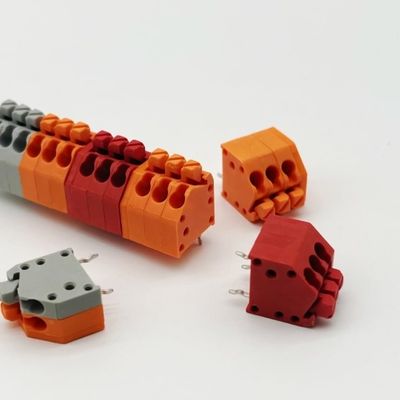

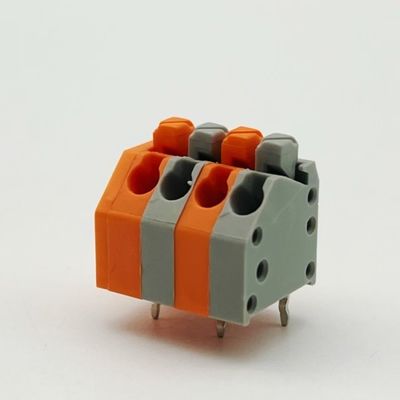

2.5mm 3.5mm Screwless Terminal Block Connector PCB Spring Terminal Blocks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HONSHI
Certification:	ISO9001/ISO14001/CE/ROHS/REACH
Model Number:	HS250-NP
Document:	HS250-250(350)XXXX1.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Price:	Negotiaiton
Packaging Details:	Tray packing
Delivery Time:	15~25Day
Payment Terms:	T/T,Paypal
Supply Ability:	2000000 Box/Boxes per Week

Contact Now

Detailed Product Description

Type:	PCB Screw Terminal Blocks	Application:	PCB
Gender:	Male	Product Name:	Terminal Blocks
Contact Material:	Brass	Color:	Customer
Material:	PA66/PBT/Nylon	Current Rating:	7A AC
Voltage Rating:	300V DC/AC	Plating:	Tin/gold Flash/5u''gold/10u''gold/15u''gold/30u''gold
Pin:	1-15Pin	Wire Range:	24,22,20awg
Highlight:	Screwless Terminal Block Connector , 3.5mm Terminal Block Connector , 2.5mm PCB Spring Terminal Blocks

20AWG Wire Range Brass Contact 2.5mm 3.5mm Screwless Terminal Block Connector PCB Spring Terminal Blocks

SPECIFICATIONS
Rated:	300V,10A	Housing Material:	PA66(UL94 V-0)
Dielectric strength:	AC2000V/1 Minute	Contact:	Brass,Tin plating
Insulation Resistance:	5000MΩ Min	Reed:	Stainless seel
Contact Resistance:	20mΩ Max	Assembly method:	PCB Screw Terminal Blocks
Wire Range:	16~22AWG	5~10pcs Free Samples, inventory sample 2-3Working day/customized sample 5-10Working day
Strip length:	10mm
Temp. range:	-40℃~+105℃	Application:PCB,AV equipment,medical equipment,military communication,aerospace,Phone watch, electron
MAX Soldering:	+250°C,5s
All materials comply with"ROHS" environmental protection standards

2.5mm 3.5mm Screwless Terminal Block Connector PCB Spring Terminal Blocks 0

Terminal Block Electronic components used for circuit connections

Terminal block is an electronic component used for circuit connection, also known as terminal block, electrical connector, etc.

And terminal block is a kind of accessory product used to realize electrical connection, which is divided into the category of connector in industry.

With the increasing degree of industrial automation and industrial control requirements more and more stringent, accurate, the amount of terminals gradually increased. With the development of the electronics industry, the use of more and more terminals, and more and more types. The most widely used PCB board terminals, etc.

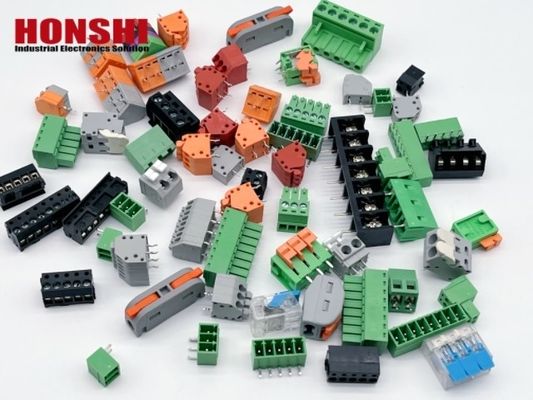

The types of terminals developed and produced by HonShi Electronics can be divided into: screw PCB terminals, plug-in terminals, spring PCB terminals, through terminals, fence terminals and MCS multi-purpose terminals.
