Name: Flat Flexible Cable Wiring Harness 0.5MM Pitch 4P-68P Reverse 60/100/150/200MM FFC Cable
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: FFC-1XXBXXX0X
Price: 0.03 USD
Availability: InStock

Home Products FFC Ribbon Cable

Flat Flexible Cable Wiring Harness 0.5MM Pitch 4P-68P Reverse 60/100/150/200MM FFC Cable

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS/UL
Model Number:	FFC-1XXBXXX0X

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.03 - $0.1/pieces
Packaging Details:	Tray/Pe bag
Payment Terms:	T/T,Paypal
Supply Ability:	500000kpcs

Contact Now

Detailed Product Description

Application:	Automobile	Product Name:	FFC FPC Cable
Rated Voltage:	60V	Reference Standard:	UL20798 / UL20624/UL20706
Type:	A/ B/ C/D/E	Length:	Customized Length
Conductor Material:	Tinned Copper Wire	Insulation Material:	PET Ribbon Parallel Cable
MOQ:	Small MOQ And Trial Order Are Welcome.	Service:	OEM ODM Accept
Samples:	Sample Provide
Highlight:	0.5MM Pitch FFC Cable , 200MM FFC Cable , 68P FFC Cable

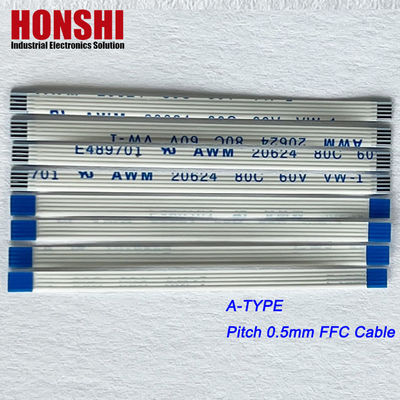

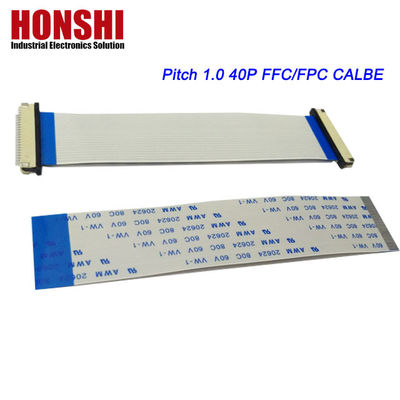

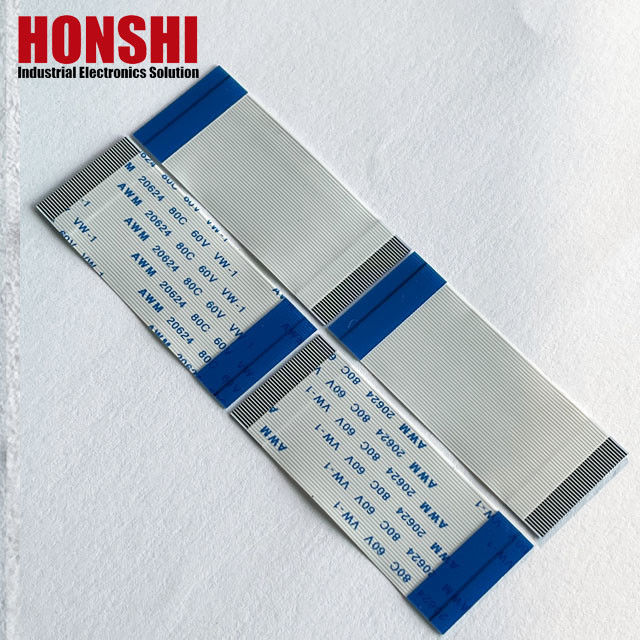

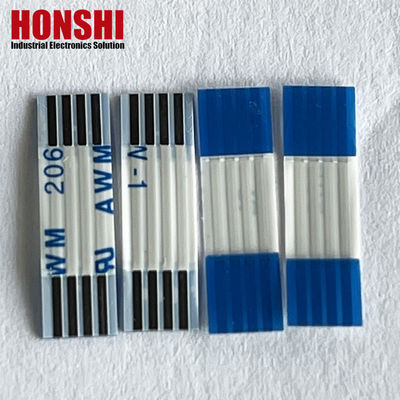

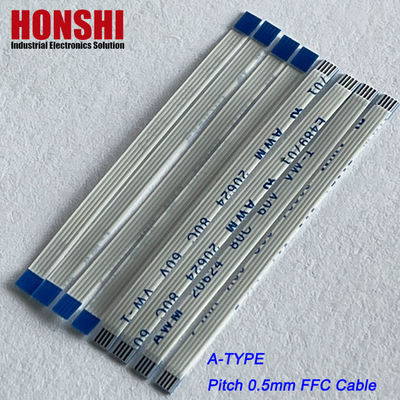

Flat Flexible Cable Wiring Harness 0.5MM Pitch 4P-68P Reverse 60/100/150/200MM FFC Cable

Product Name	FFC Flexible Flat Cable
Connector	FPC Connector
Pitch	0.5/1.0/1.25/2.0/2.54mm
Positions	4P-98P
Total Length	can customized
Terminal Thickness	0.30±0.05
Insertion Thickness	0.121 ±0.02
Conductor Strip Length	3.0/4.0/5.0(can customized)
Supporting Tape Length	5.0/6.0/8.0(can customized)
Conductor Thickness	0.035/0.50mm
Conductor Width	0.65±0.03
Slanting	＜0.50
Supporting Tape Color	Blue
Supporting Tape Spec	0.225mm

Ffc Flat Cable Custom Awm 20706 105c 60v Vw-1 20624 80c 60v 6 / 50 Pin Cable Ffc Fpc 0

Ffc Flat Cable Custom Awm 20706 105c 60v Vw-1 20624 80c 60v 6 / 50 Pin Cable Ffc Fpc 1

Product name: FFC Flat Cable

Flexible Flat Cable (FFC) allows for arbitrary selection of the number and spacing of wires, making wiring more convenient, greatly reducing the volume of electronic products, lowering production costs, and improving production efficiency. It is most suitable for use as a data transmission cable between moving parts and motherboards, PCB boards to PCB boards, and in miniaturized electrical equipment. Ordinary specifications include various spacing flexible cables such as 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm, etc.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.
