Name: 1x3P DIP Pogo Pin Connector Spring Loaded 2 Pin - 40 Pin 2.54mm Pitch
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: A411503NXXDV075X01
Price: 0.35 USD
Availability: InStock

Home Products POGO Pin Connector

1x3P DIP Pogo Pin Connector Spring Loaded 2 Pin - 40 Pin 2.54mm Pitch

Product Details:

Place of Origin:	CHINA
Brand Name:	HONSHI
Certification:	ISO9001/ISO14001/CE/ROHS/REACH
Model Number:	A411503NXXDV075X01

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.35 - $0.75/pieces
Packaging Details:	PE Bag,Tube,Reel Packaging
Delivery Time:	15~25Day
Payment Terms:	T/T,Paypal
Supply Ability:	990000pcs

Contact Now

Detailed Product Description

Specification::	2.54mm Pitch Pogo Pin Connector	Model Number::	A411503NXXDV075X01
Pitch::	2.54mm	Positions::	1x3P
Gender::	Male	Type:	DIP Type
Material:	Plunger:Brass 3604 & Barrel:Brass 3604	Housing:	PA46 Black
Plating:	Gold Palted(3U") Or Customized	Salt Fog:	72H
Sample:	Support Samples
Highlight:	DIP Pogo Pin Connector , 1x3P Pogo Pin Connector , 2 Pin 2.54mm Connector

2.54 Pitch 2-40pin Pogo Pin Connectors Spring Loaded Pogo Pin Connector

Specific material electrical parameters
Electrical Performance:		Mechanical Performance:
Rated Current:	1.0AMP	Spring force:	70g±20g or Customized
Contact Resistance:	50mΩ Max	Work Stroke:	1.5mm or Customized
Rated Voltage:	DC 12V	Maximum Working stroke:	1.9mm or Customized
Operation Temperature:	-40°c to +105°c	Mechanical Life	100,000 cycles
Resistance to solder heat:	260℃±5℃ 20s±2s
Material
Plunger:	Brass 3604	Barrel:	Brass 3604
Spring:	SUS304	Housing:	PA46 Black
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ

1x3P DIP Pogo Pin Connector Spring Loaded 2 Pin - 40 Pin 2.54mm Pitch 0

Drawing:A411503NXXDV075X01.pdf

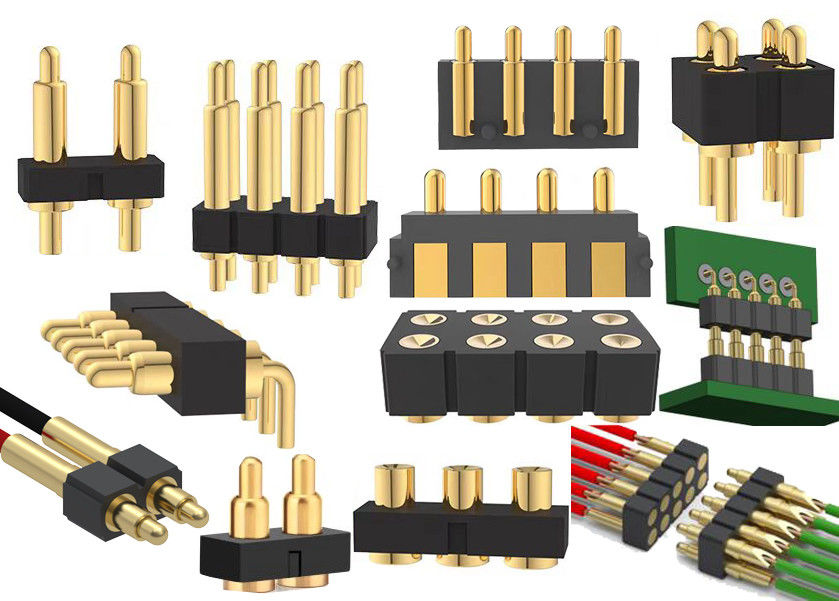

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type, side hole type, etc.

Plating selection: regular gold plating, nickel plating, etc. Current range: regular 0.5-3A, high current 5-80A.

Pogo Pin connector spacing can be divided into: 1.27mm,2.0mm,2.5mm,2.54mm,3.0mm,4.0mm, plastic materials commonly used PA46.

1x3P DIP Pogo Pin Connector Spring Loaded 2 Pin - 40 Pin 2.54mm Pitch 2

1x3P DIP Pogo Pin Connector Spring Loaded 2 Pin - 40 Pin 2.54mm Pitch 3
