M8 IP67 Circular Connector Male Shield Plug 3 4 5 6 8 Pin Assembly Type Connector

IP67 Circular Connector M8 Male Shield Plug 3 4 5 6 8pin Assembly cable connector 24AWG PVC/PUR  cable assembly

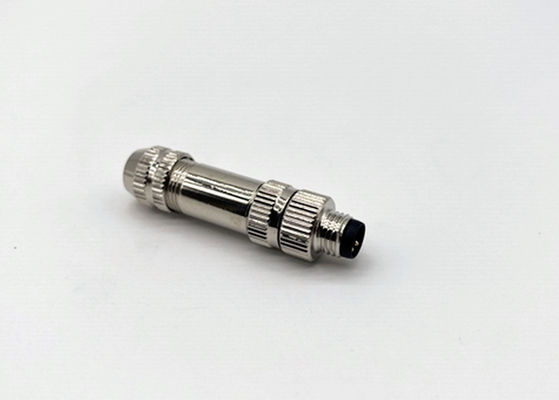

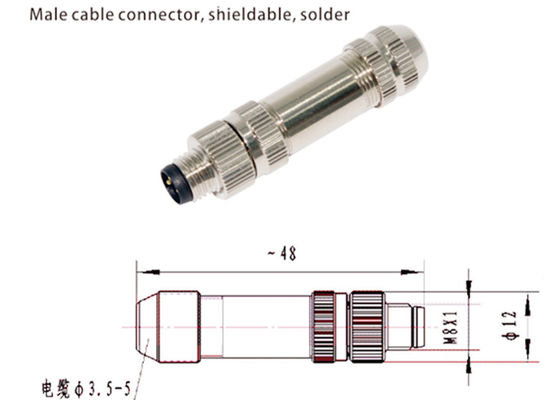

Product name: M8 Shield Connector

Industrial circular connectors, also known as circular aviation plugs, circular aviation plugs, or circular interconnects, are multi-pin electrical connectors with a cylindrical basic structure with circular mating surfaces for interconnection between devices. The round aviation plug has two parts: a socket and a plug, and the common accessories include connector housings, reeds, pins, pins, terminal blocks, waterproof gaskets, dust covers, etc. The housing of the circular connector is made of zinc alloy or PBT engineering plastic material, which is robust and stable to ensure that data or current can be transmitted smoothly and efficiently.

It is widely used in aviation, aerospace, industrial automation, new energy, military equipment, computers, navigation and various instruments, meters and other electronic equipment.
Circular connector shells are often constructed with threads to allow for more secure screw-in connections where vibration or other factors would potentially cause unwanted decoupling. Other types of connection systems include bayonet locking, push/pull locking, and snap lock.From a high level, each circular connector consists of four main areas.
Contacts: The internal pins and sockets housed in the connector used to form the electrical connection. A mated pair consists of male contacts and female sockets.
Insulator: This component encapsulates the contacts and insulates them from each other and the connector shell. It also provides proper spacing of the contacts and holds them in the correct position.
Shell: As the outer cover of the connector, the shell protects the contacts and insulator while providing the alignment and connection mechanism for pairing two connector halves.
Accessories: These can include pins, keys, rings, clamps, gaskets, and additional components utilized to guide, secure, position, and seal parts of the connector.

Product features:
1. Simple structure: the circular connector is composed of two plugs and sockets that match each other, and only the plug needs to be inserted into the socket when connecting.
2. High reliability: The circular connector adopts metal contacts, which have good contact performance and conductivity, which can ensure stable signal transmission and power transmission.
3. Strong durability: The plugs and sockets of circular connectors are made of wear-resistant materials, which can withstand long-term plugging and repeated use.
4. Waterproof and dustproof: Most of the circular connectors have the function of waterproof and dustproof, and can work normally in harsh environments.
5. Easy installation: The circular connector is simple to install, usually only need to fix the socket on the equipment, and the plug can be plugged and unplugged at any time.
6. Strong adaptability: Circular connectors can be selected with different specifications and interface types according to needs, and are suitable for a variety of different equipment and systems
