Name: Customizable Side Mounted Spring Needle Pogo Pin For High Current 5A 10A Smart
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: A20450XXSHX01
Price: 499.15 USD
Availability: InStock

Home Products POGO Pin Connector

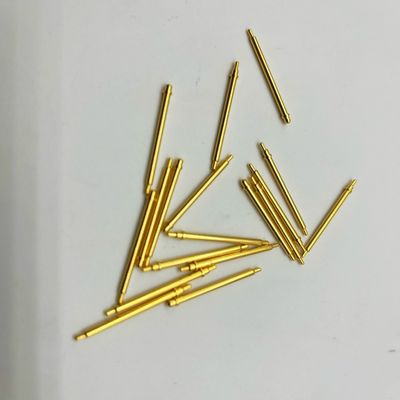

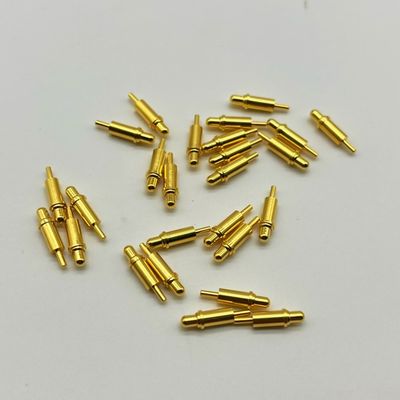

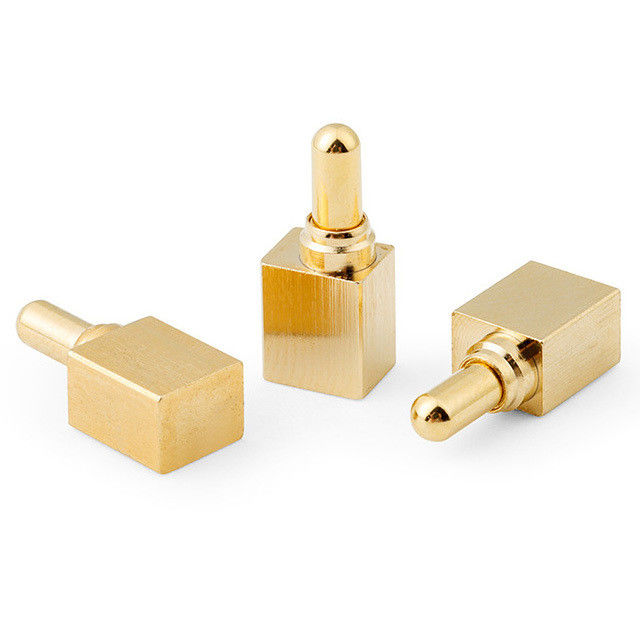

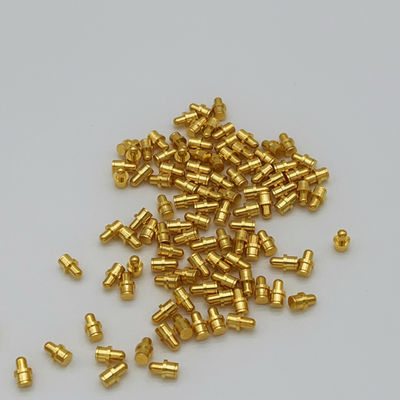

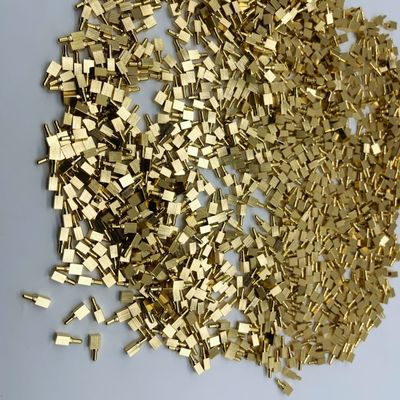

Customizable Side Mounted Spring Needle Pogo Pin For High Current 5A 10A Smart

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS/UL
Model Number:	A20450XXSHX01

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.15/pieces 1000-9999 pieces

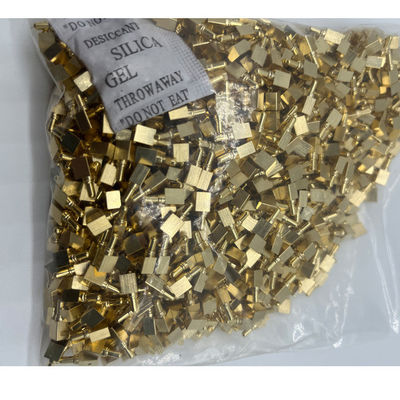

Packaging Details:	PE Bag or Reel packing
Delivery Time:	5-8 Day
Payment Terms:	T/T,Paypal
Supply Ability:	1000000 Piece/Pieces per Week

Contact Now

Detailed Product Description

Type:	F	Application:	PCB
Gender:	Female	Product Name:	Single Pogo Pin
Material:	Brassc3604	Plating:	Gold Flash(can Customized)
Rated Voltage:	DC12V,5A	Contacts Resistance:	50mohm Max
Spring Force:	100g±20%	Cycle Life:	10,000 Times
Salt Fog:	72H	Sample:	Free Samples(within 10pcs)
Packing:	PE.Bag/Tape&Reel
Highlight:	Customizable Spring Needle Pogo Pin , Spring Needle Pogo Pin 5A

Customizable Side Mounted Spring Needle Pogo Pin For High Current 5A 10A Smart

Specific material electrical parameters
Electrical Performance:		Mechanical Performance:
Rated Current:	1.5/2.0/3.0AMP	Spring force:	100g±20g or Customized
Contact Resistance:	50mΩ Max	Work Stroke:	Customized
Rated Voltage:	DC 12V	Maximum Working stroke:	Customized
Operation Temperature:	-40°c to +105°c	Mechanical Life	100,000 cycles
Resistance To Solder Heat:	260℃±5℃ 20s±2s
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ.

Custom SMT SMD Pogo Pins with 10 Cycle Life for DIA2.00mm Pogo Pin Connectors 0

POGO PIN:Product selection Catalogs.pdf

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,

side hole type, etc.

The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.

Plating selection: regular gold plating, nickel plating, etc.

Thread Type Pogo Pin Connector Brass Dia8.0 Spring Loaded Pogo Pin 2

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

Tag:

Contact Person: Mr. Lynn

Tel: +86 18086485773

Fax: 86-0769-81353397
