Name: 6 Pin Pogo Pin Connector With Spring Contact Easy Maintenance And Replacement
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: A4XXX06FXXSVXXXX01
Price: 499.01 USD
Availability: InStock

Home Products POGO Pin Connector

6 Pin Pogo Pin Connector With Spring Contact Easy Maintenance And Replacement

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HONSHI
Certification:	ISO9001/ISO14001/CE/ROHS/REACH
Model Number:	A4XXX06FXXSVXXXX01
Document:	Catalogs-POGO PIN Connector...es.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	Negotiaiton
Packaging Details:	PE Bag or Reel packing
Delivery Time:	15~25Day
Payment Terms:	T/T,Paypal
Supply Ability:	1000000 Piece/Pieces per Week

Contact Now

Detailed Product Description

Key Words:	Pogo Pin Connector	Type:	SMT Type
Pitch:	2.54mm	Plastic Height::	1.5mm/2mm/2.5mm/4mm
Positions:	2X3P Or Customized	Gender:	Female
Number Of Lines:	Doual Row	Plating:	Gold Palted(3U") Or Customized
Material:	Plunger:Brass 3604,Barrel:Brass 3604, Spring:SUS304	Sample::	Support Samples With 1weeks
Highlight:	Easy Maintenance Pogo Pin Connector

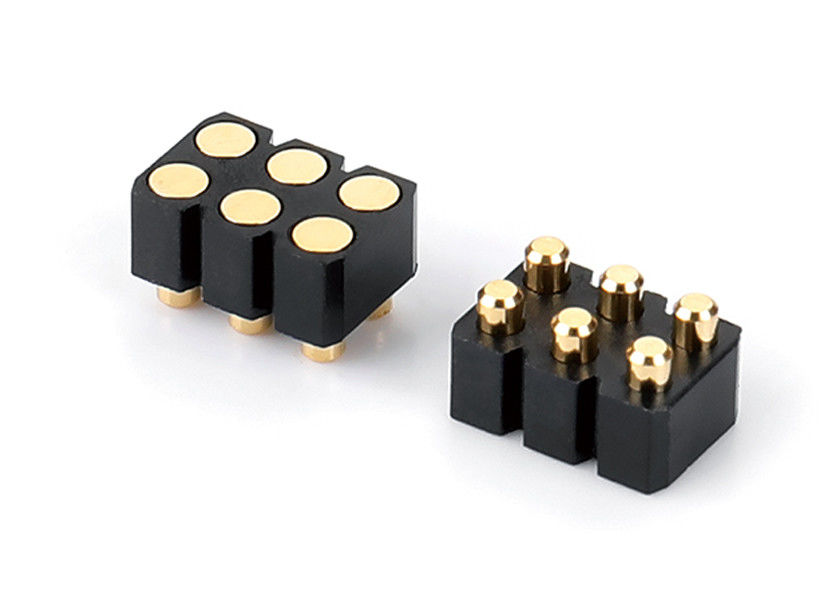

6 Pin Pogo Pin Connector with Spring Contact Easy Maintenance and Replacement

Specific material electrical parameters
Electrical Performance:		Mechanical Performance:
Rated Current:	1.0AMP	Spring force:	70g±20g or Customized
Contact Resistance:	50mΩ Max	Work Stroke:	1.5mm or Customized
Rated Voltage:	DC 12V	Maximum Working stroke:	1.7mm or Customized
Operation Temperature:	-40°c to +105°c	Mechanical Life	100,000 cycles
Resistance to solder heat:	260℃±5℃ 20s±2s	Salt Spray:	72H
Material
Plunger:	Brass 3604	Barrel:	Brass 3604
Spring:	SUS304	Housing:	PA46 Black
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ

6 Pin Pogo Pin Connector With Spring Contact Easy Maintenance And Replacement 0

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Pogo pin is a kind of spring probe formed by three basic components of needle shaft, spring and needle tube after riveting and pre-pressing with precision instruments, with a precision spring structure inside.

Pogo pin has different appearance according to different applications. The surface coating is generally gold-plated, which can better improve its anti-corrosion function, mechanical properties, electrical properties, etc.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type, side hole type, etc. The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc

Plating selection: regular gold plating, nickel plating, etc. Current range: regular 0.5-3A, high current 5-60A. Travel range: Refers to the compression stroke of the spring.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.
