Name: Custom 2.54mm Dip Type 3pin H1.5mm Pogo Pin connector for spring pin connector
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: A4XXX03MXXDRXXXX01
Price: 499.01 USD
Availability: InStock

Home Products POGO Pin Connector

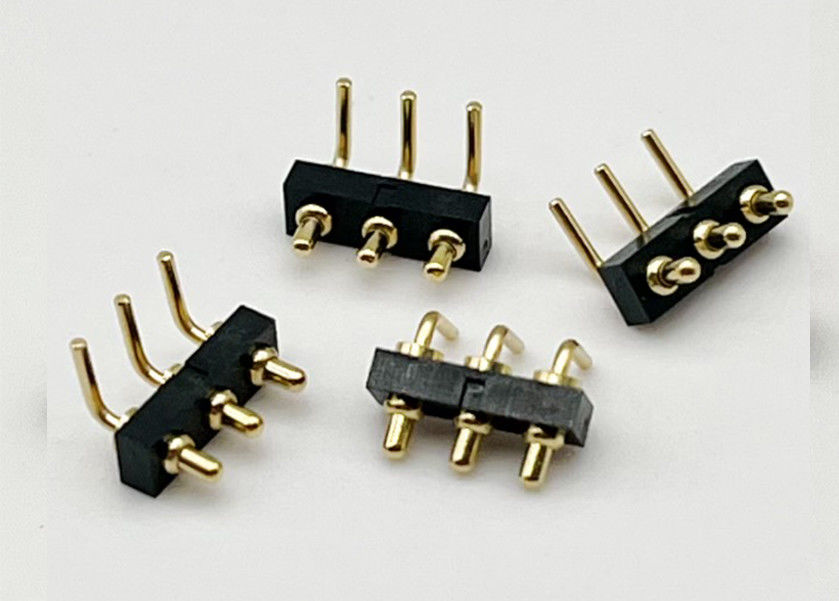

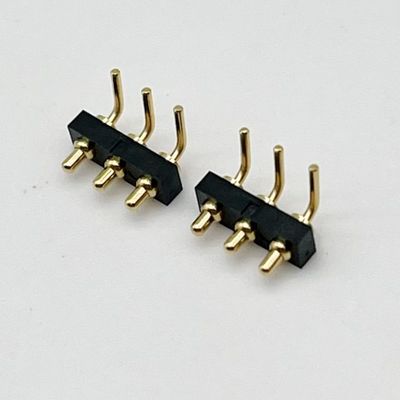

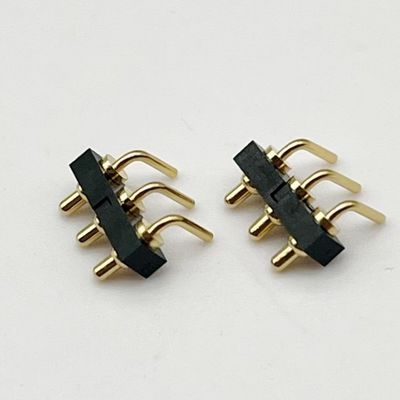

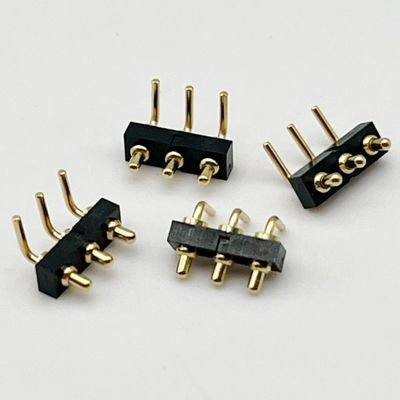

Custom 2.54mm Dip Type 3pin H1.5mm Pogo Pin connector for spring pin connector

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HONSHI
Certification:	ISO9001/ISO14001/CE/ROHS/REACH
Model Number:	A4XXX03MXXDRXXXX01
Document:	Catalogs-POGO PIN Connector...es.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	Negotiaiton

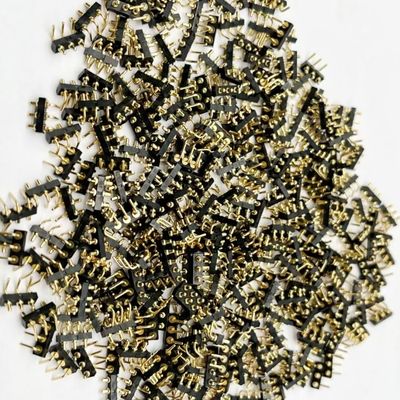

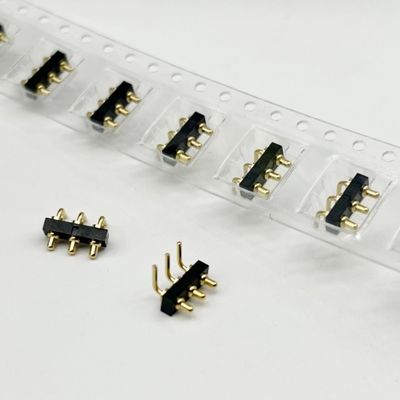

Packaging Details:	PE Bag,Tube,Reel Packaging
Delivery Time:	15~25Day
Payment Terms:	T/T,Paypal
Supply Ability:	100000

Contact Now

Detailed Product Description

Type:	Right Angle DIP Type	Application:	PCB
Gender:	Male	Product Name:	POGO PIN Connector
Contact Material:	Brass	Plating:	Gold Flash(can Customized)
Rated Voltage:	DC12V,5A	Contacts Resistance:	50mohm Max
Spring Force:	100g±20%(customized)	Cycle Life:	10,000 Times
Salt Fog:	72H	Sample:	Free Samples(within 10pcs)
Packing:	PE.Bag/Tape&Reel
Highlight:	Spring Pin Pogo Pin connector

3 Pin Right Angle Male Brass Spring Loaded Ball Plunger Magnetic Pogo Pin Connector with and Customized Spring Force

Specific material electrical parameters
Electrical Performance:		Mechanical Performance:
Rated Current:	1.0AMP	Spring force:	70g±20g or Customized
Contact Resistance:	50mΩ Max	Work Stroke:	1.5mm or Customized
Rated Voltage:	DC 12V	Maximum Working stroke:	1.7mm or Customized
Operation Temperature:	-40°c to +105°c	Mechanical Life	100,000 cycles
Resistance to solder heat:	260℃±5℃ 20s±2s	Salt Spray:	72H
Material
Plunger:	Brass 3604	Barrel:	Brass 3604
Spring:	SUS304	Housing:	PA46 Black
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ

Catalogs-POGO PIN Connectors Series.pdf

3p 2.54mm Spring Loaded Female Ball Plunger Magnetic Pogo Pin Connector 1

3p 2.54mm Spring Loaded Female Ball Plunger Magnetic Pogo Pin Connector 2

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Pogo pin is a kind of spring probe formed by three basic components of needle shaft, spring and needle tube after riveting and pre-pressing with precision instruments, with a precision spring structure inside.

Pogo pin has different appearance according to different applications. The surface coating is generally gold-plated, which can better improve its anti-corrosion function, mechanical properties, electrical properties, etc.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type, side hole type, etc. The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc

Plating selection: regular gold plating, nickel plating, etc. Current range: regular 0.5-3A, high current 5-60A. Travel range: Refers to the compression stroke of the spring.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.
