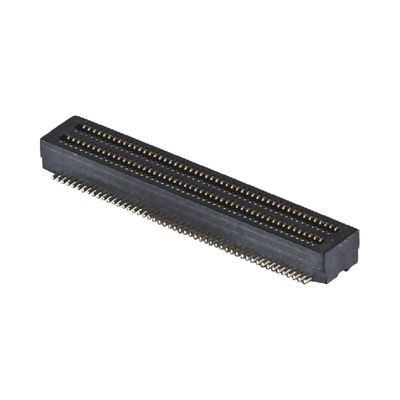

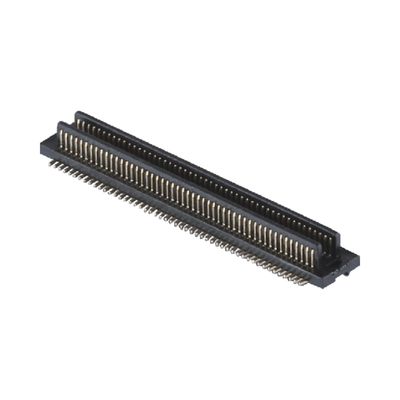

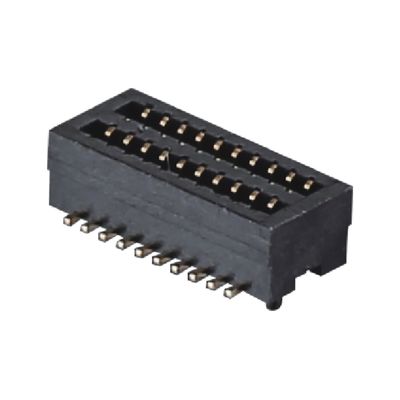

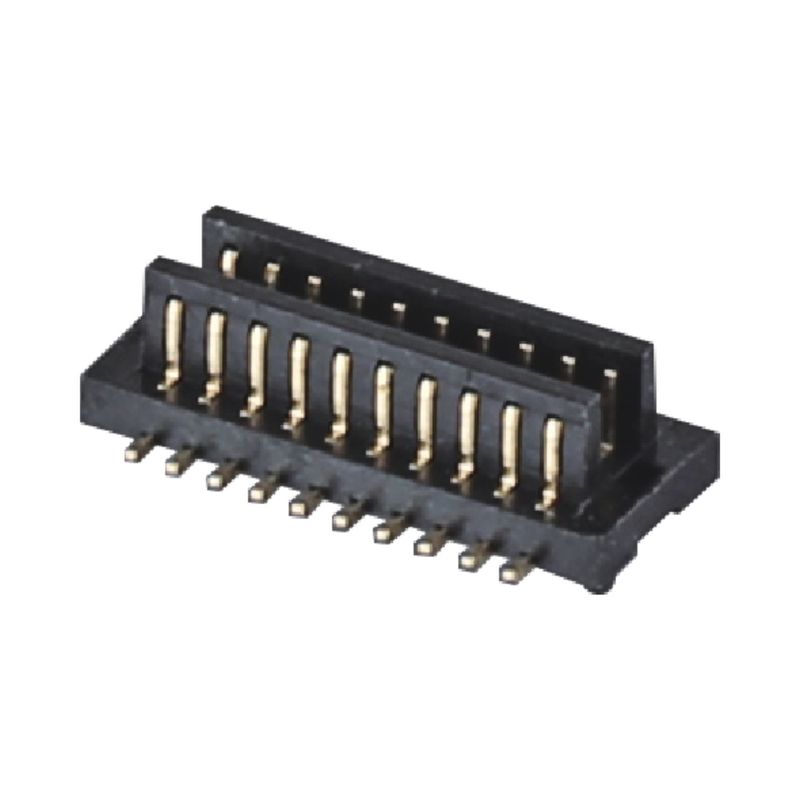

Name: 0.8mm Pitch BTB Connector 10 - 100 Pin High Speed Male Connector Phosphor Bronze
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: 2830-XXXMXXXXXXX01
Price: 0.05 USD
Availability: InStock

Home Products Board To Board Connector

0.8mm Pitch BTB Connector 10 - 100 Pin High Speed Male Connector Phosphor Bronze

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS/UL
Model Number:	2830-XXXMXXXXXXX01
Document:	2830-XXXMXXXXXXX01.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Price:	$0.05 - $0.15/pieces
Packaging Details:	Tray/Tube/Reel
Payment Terms:	T/T,Paypal
Supply Ability:	1000000 Box/Boxes per Week

Contact Now

Detailed Product Description

Type:	DIN	Application:	PCB
Gender:	Male	Product Name:	BTB Connector
Contact Material:	Phosphor Bronze	Rated Current:	1AMP
Contact Resistance:	20mΩ	Plated:	Gold Palted(1U")(can Customized)
Packing:	Tube/Reel	Withstand Voltage:	200V AC/Minute
Pin:	8 - 100 Pin	Color:	Black
Pitch:	0.5/0.8mm
Highlight:	BTB Connector High Speed , BTB Connector 100 Pin , 0.8mm Pitch Connector High Speed

0.8mm Pitch BTB Connector 10 -100 Pin High Speed Male Connector Phosphor Bronze

Product Name	Board to Board Connector
Pitch	0.5/0.635/0.8/1.0mm
Positions	10P-100P
Current Rating	0.5/1.0A
Contact Resistance	20mΩ Max
Withstand Voltage	500V /1000V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	Phosphor bronze
Contact Plating	Au Or Sn over Ni
Insulator Material	PA9T/LCP ( UL94V-0 )

0.8mm Pitch BTB Connector 10 - 100 Pin High Speed Male Connector Phosphor Bronze 0

2.54mm DIN 41612 Connector 2 Row 64Pin Right Angle dip Male Phosphor Bronze 1 Drawing:2830-XXXMXXXXXXX01.pdf

Item name: Board to Board Connector

1 The first feature is that BTB has a flexible connection and it's easy to install and remove.

2 The board-to-board connector ultra-low height to achieve the purpose of thinning the body thickness.

3 In order to meet the requirements of the SMT process, the entire product terminal welding area are strictly required to have good coplanarity.

4 Board-to-board connectors can be simple construction of machine circuit design. By setting up an insulating wall on the bottom of the connector so that the PCB board alignment and metal terminals can be wired on the bottom of the connector without contact.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

Management Concept

Responsibility Innovation Integrity Win-Win;

Team Culture

Thanksgiving Valute Respects Team efforts;

Service Purpose

Quality fisrt Customer Satisfaction Professinal Improving;

Sustainable Manner

HONSHI grow in a sustainable manner,to support our valued customers with flexibly customized interconnect solutions.
