Custom 2.54mm Pitch Male 6 Pin 1.5mm PCB Connector Spring Loaded Pogo Pin Connector

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS/UL
Model Number:	A411506MXXDVXXXX01

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.35 - $0.75/pieces
Packaging Details:	Tray/Tube/Reel
Delivery Time:	7-15 Day
Payment Terms:	T/T,Paypal
Supply Ability:	500000kpcs

Contact Now

Detailed Product Description

Type:	F	Application:	Automotive
Gender:	Male	Product Name:	Pogo Pin Connector
Material:	Brass C3604	Plating:	Gold Plating 3-10u"
Rated Voltage:	DC12V,1A	Contacts Resistance:	50mohm Max
Spring Force:	100g±20%	Cycle Life:	10,000 Times
Salt Fog:	72H	Sample:	Free Samples(within 10pcs)
Packing:	PE.Bag/Tape&Reel
Highlight:	1.5mm PCB Connector , 1.5mm Pogo Pin Connector

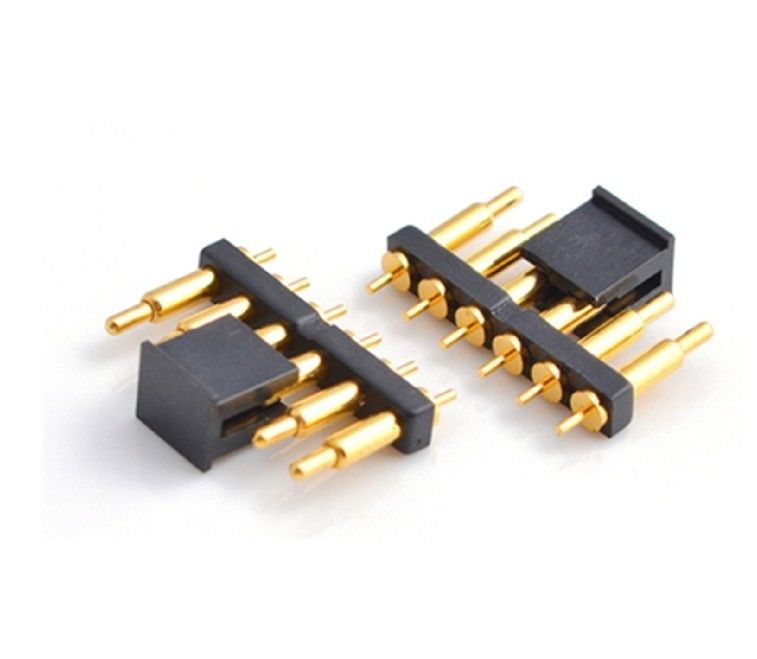

Custom 2.54mm Pitch Male 6 Pin 1.5mm PCB Connector Spring Loaded Pogo Pin Connector

Specific material electrical parameters
Electrical Performance:		Mechanical Performance:
Rated Current:	1.0AMP/3.0AMP	Spring force:	70g±20g or Customized
Contact Resistance:	50mΩ Max	Work Stroke:	1.5mm or Customized
Rated Voltage:	DC 12V	Maximum Working stroke:	1.7mm or Customized
Operation Temperature:	-40°c to +105°c	Mechanical Life	100,000 cycles
Resistance to solder heat:	260℃±5℃ 20s±2s	Salt Spray:	72H
Material
Plunger:	Brass 6801	Barrel:	Brass 6801
Spring:	SUS304	Housing:	PA9T Black
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ

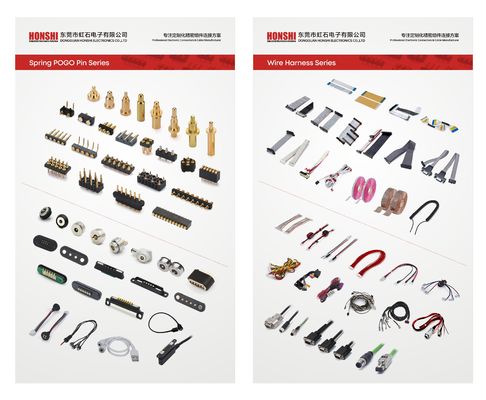

Catalogs-POGO PIN Connectors Series.pdf

2.54mm 5pins Pogo Pin Connector Dip Type For Spring Pin Connector 1

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

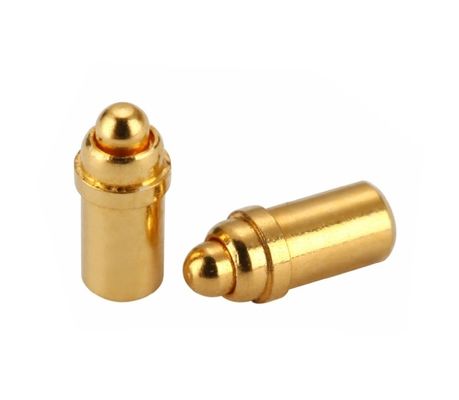

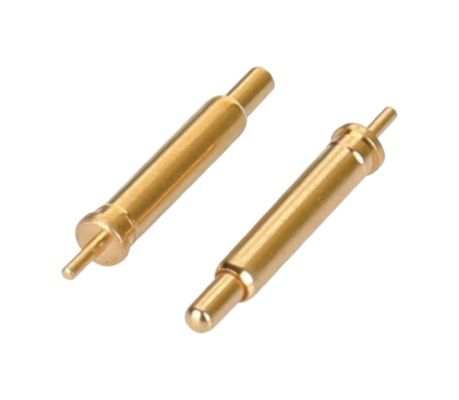

Pogo pin is a kind of spring probe formed by three basic components of needle shaft, spring and needle tube after riveting and pre-pressing with precision instruments, with a precision spring structure inside.

Pogo pin has different appearance according to different applications. The surface coating is generally gold-plated, which can better improve its anti-corrosion function, mechanical properties, electrical properties, etc.

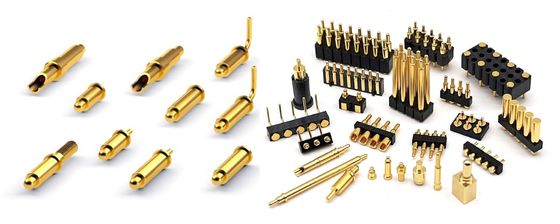

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type, side hole type, etc. The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc

Plating selection: regular gold plating, nickel plating, etc. Current range: regular 0.5-3A, high current 5-60A. Travel range: Refers to the compression stroke of the spring.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.
