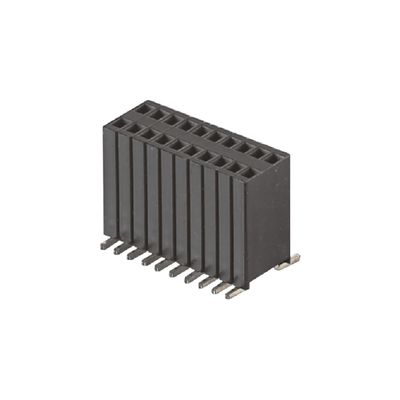

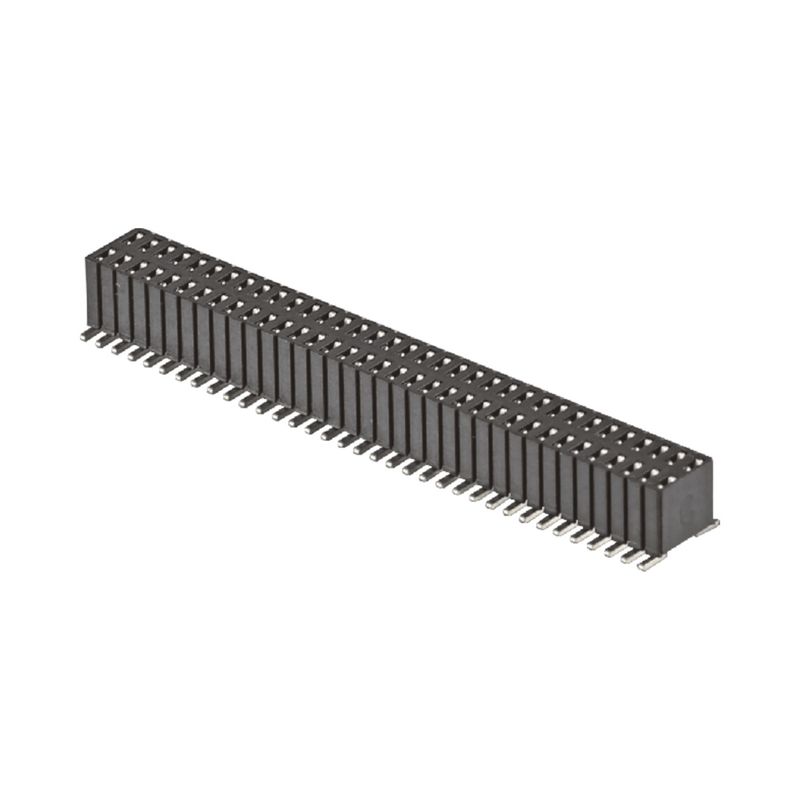

Name: 1.27x2.54mm SMD Type Board To Board Connector 2x2 2x50pin Female Pin Header Connector
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: 2346-2XXMYXXXNX01
Price: 0.02 USD
Availability: InStock

Home Products Board To Board Connector

1.27x2.54mm SMD Type Board To Board Connector 2x2 2x50pin Female Pin Header Connector

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS/UL
Model Number:	2346-2XXMYXXXNX01
Document:	2346-2XXMYXXXNX01.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.02 - $0.10/pieces
Packaging Details:	Tray/Tube
Delivery Time:	10-15 Day
Payment Terms:	T/T,Paypal
Supply Ability:	800000kpcs

Contact Now

Detailed Product Description

Type:	DIN	Application:	PCB
Gender:	Female	Housing Material:	Brass, Nylon
Product Name:	Female Header Connector	Contact Material:	Brass
Rated Current:	2AMP	Contact Resistance:	20mΩ
Plated:	Gold Palted(1U")(can Customized)	Packing:	Tube/Reel
Withstand Voltage:	1000V AC/Minute	Pitch:	1.27x2.54mm
Pin:	2 - 80 Pin	Color:	Black
Highlight:	ROHS Board To Board Connector , SMD Board To Board Connector , SMD Female Pin Header Connector

1.27x2.54mm H4.6mm Female Header SMD Type 2x2 2x50pin Female Pin Header Connector

Product Name	Female Header Connector
Pitch	0.8/1.0/1.27/1.27X2.54/2.0/2.54/3.96/5.08mm
Positions	2P-100P
Current Rating	1A/2A/3A/5A/7A
Contact Resistance	20mΩ Max
Withstand Voltage	500V /1000V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	Brass/Phosphor bronze
Contact Plating	Au Or Sn over Ni
Insulator Material	PBT/PA6T/PA9T/LCP ( UL94V-0 )

1.27x2.54mm SMD Type Board To Board Connector 2x2 2x50pin Female Pin Header Connector 0

2.54mm DIN 41612 Connector 2 Row 64Pin Right Angle dip Male Phosphor Bronze 1 Drawing:2585-1XXSYXXXNX01.pdf

Item name: Female Header Connector

1. The product precision and reliable performance.

2. 0.8mm/1.0mm/1.27mm/2.0mm/2.54mm/3.96mm/5.08mm pitch pin header are featured products in our company.

3.material: its material is brass wire, phosphor copper wire, pure copper wire, the surface of Gold plating, nickel plating.

4. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

Management Concept

Responsibility Innovation Integrity Win-Win;

Team Culture

Thanksgiving Valute Respects Team efforts;

Service Purpose

Quality fisrt Customer Satisfaction Professinal Improving;

Sustainable Manner

HONSHI grow in a sustainable manner,to support our valued customers with flexibly customized interconnect solutions.

Tag:

Contact Person: Mr. Lynn

Tel: +86 18086485773

Fax: 86-0769-81353397

Other Products

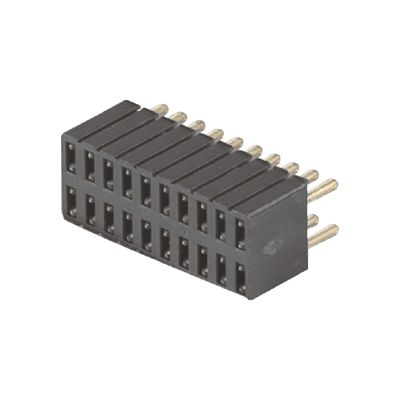

2.0mm H4.3mm DIP Header Female Straight Dip 2x2 2x40pin Female Header Connector

Type: DIN

Application: PCB

Gender: Female

Product name: Female Header Connector

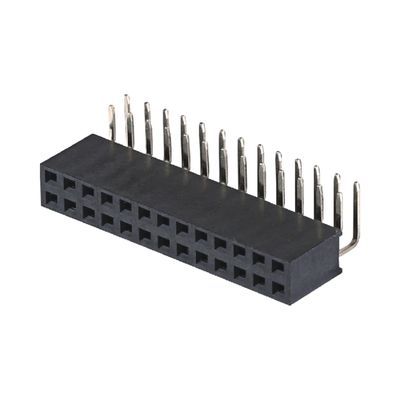

2.0mm H4.3 4.6mm Female Pin Header Connector Right Angle 90 Degree 2x2 2x40pin
