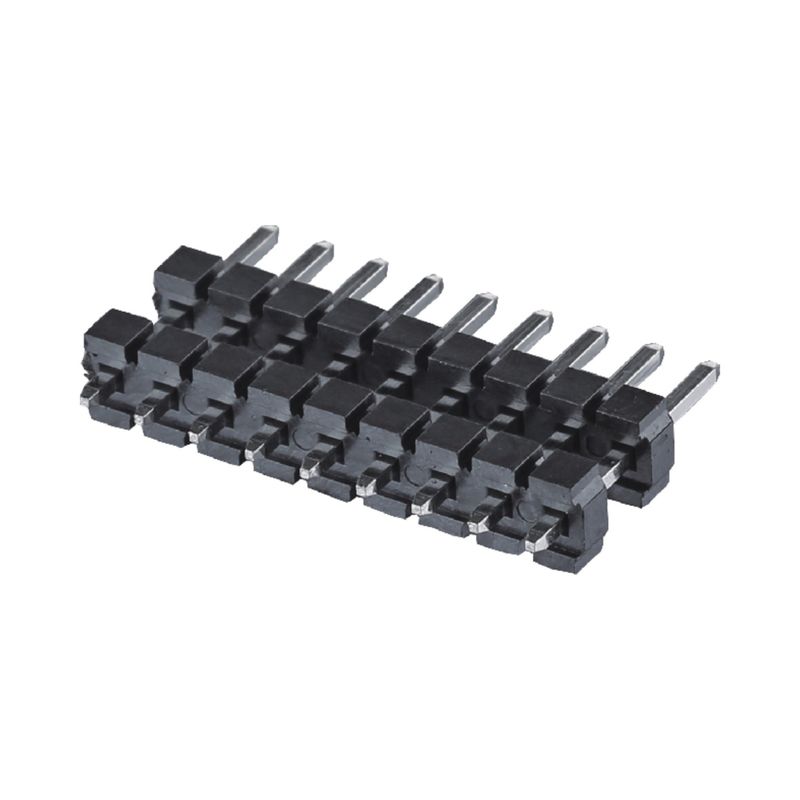

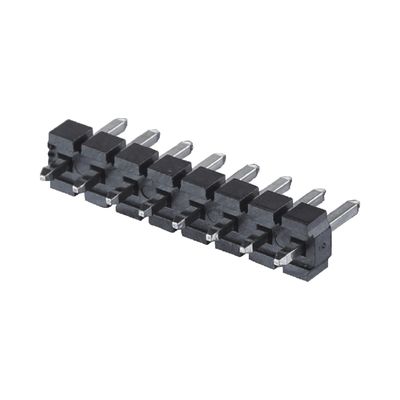

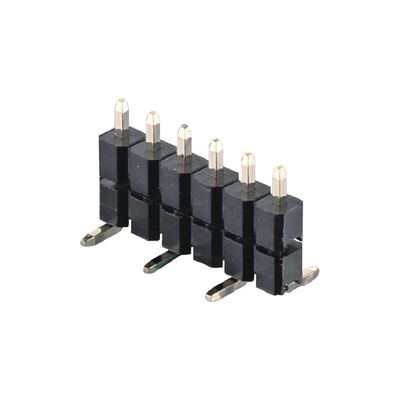

Name: 5.08mm Pitch Single Row Header Connector Straight Dip Type 2 - 20 Pin H2.5mm
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: 1725-21XXSXXXXXXNX01
Price: 0.03 USD
Availability: InStock

Home Products Board To Board Connector

5.08mm Pitch Single Row Header Connector Straight Dip Type 2 - 20 Pin H2.5mm

Product Details:

Place of Origin:	China
Brand Name:	HONSHI
Certification:	ROHS/SGS/UL
Model Number:	1725-21XXSXXXXXXNX01
Document:	1725-21XXSXXXXXXNX01.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.025 - $0.035/pieces
Packaging Details:	Tray/Tube/Reel
Delivery Time:	10-15 Day
Payment Terms:	T/T,Paypal
Supply Ability:	100000kpcs

Contact Now

Detailed Product Description

Type:	DIN	Application:	PCB
Gender:	Male	Product Name:	Pin Header Connector
Contact Material:	Brass	Rated Current:	7.5AMP
Contact Resistance:	20mΩ	Plated:	Gold Palted(1U")(can Customized)
Packing:	Tube/Reel	Withstand Voltage:	1500V AC/Minute
Pitch:	5.08mm	Size:	Customs
Pin:	1 - 20 Pin
Highlight:	5.08mm Single Row Header Connector , Single Row Header Connector 20 Pin , 5.08mm Pitch Connector 2 Pin

5.08mm Pitch Single Row Straight Dip Type Pin Header Connector 2-20 Pin H2.5mm

Product Name	Pin Header Connector
Pitch	0.8/1.0/1.27/1.27X2.54/2.0/2.54/3.96/5.08mm
Positions	2P-100P
Current Rating	1A/2A/3A/5A/7A
Contact Resistance	20mΩ Max
Withstand Voltage	500V /1000V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	Brass/Phosphor bronze
Contact Plating	Au Or Sn over Ni
Insulator Material	PBT/PA6T/PA9T/LCP ( UL94V-0 )

5.08mm Pitch Single Row Header Connector Straight Dip Type 2 - 20 Pin H2.5mm 0

2.54mm DIN 41612 Connector 2 Row 64Pin Right Angle dip Male Phosphor Bronze 1 Drawing:1725-21XXSXXXXXXNX01.pdf

Item name: Pin Header Connector

1. The product precision and reliable performance.

2. 0.8mm/1.0mm/1.27mm/2.0mm/2.54mm/3.96mm/5.08mm pitch pin header are featured products in our company.

3.material: its material is brass wire, phosphor copper wire, pure copper wire, the surface of Gold plating, nickel plating.

4. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

Management Concept

Responsibility Innovation Integrity Win-Win;

Team Culture

Thanksgiving Valute Respects Team efforts;

Service Purpose

Quality fisrt Customer Satisfaction Professinal Improving;

Sustainable Manner

HONSHI grow in a sustainable manner,to support our valued customers with flexibly customized interconnect solutions.
