Name: Spring Force Pogo Pin Connector With Working Height 4.9mm Dip Type Pogo Pin
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: A150XXG1DVX01
Price: 0.05 USD
Availability: InStock

Home Products POGO Pin Connector

Spring Force Pogo Pin Connector With Working Height 4.9mm Dip Type Pogo Pin

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HONSHI
Certification:	ISO9001/ISO14001/CE/ROHS/REACH
Model Number:	A150XXG1DVX01
Document:	A150XXG1DVX01.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pieces
Price:	$0.049 - $0.19/pieces
Packaging Details:	PE Bag,Tube,Reel Packaging
Delivery Time:	15~25Day
Payment Terms:	T/T,Paypal
Supply Ability:	800000PCS

Contact Now

Detailed Product Description

Type:	POGO Pin	Application:	PCB
Gender:	Male	Housing Material:	Brass
Product Name:	1.50mm Pogo Pin DIP Type	Contact Material:	Brassc3604/c6801
Plating:	Tin/gold Flash/3u''gold (can Customized)	Rated Current:	1A((can Customized)
Contact Resistance:	50mΩ Max	Life Test:	10,000 Cycles
Lead Time:	2Weeks After Confirm Your Order
Highlight:	4.9mm Pogo Pin Connector , Dip Type Pogo Pin Connector , Spring Force Pogo Pin Connector

Spring Force Pogo Pin Connector With Working Height 4.9mm Dip Type Pogo Pin

Electrical Performance:		Mechanical Performance:
Rated Current:	1AMP	Spring force:	100g±20g or Customized
Contact Resistance:	50mΩ Max	Work Stroke:	Customized
Rated Voltage:	DC 12V	Maximum Working stroke:	Customized
Operation Temperature:	-40°c to +105°c	Mechanical Life	100,000 cycles
Resistance To Solder Heat:	260℃±5℃ 20s±2s
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ.

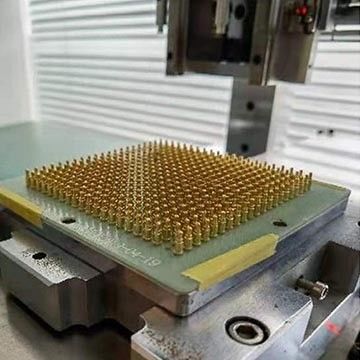

Spring Force Pogo Pin Connector With Working Height 4.9mm Dip Type Pogo Pin 0

Drawing:A150XXG1DVX01.pdf

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,

side hole type, etc.

The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.

Plating selection: regular gold plating, nickel plating, etc.

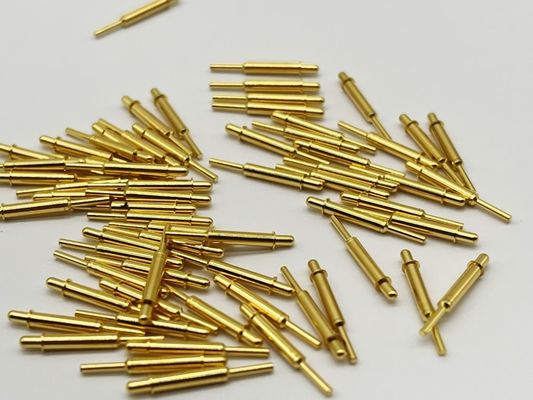

Spring Force Pogo Pin Connector With Working Height 4.9mm Dip Type Pogo Pin 2

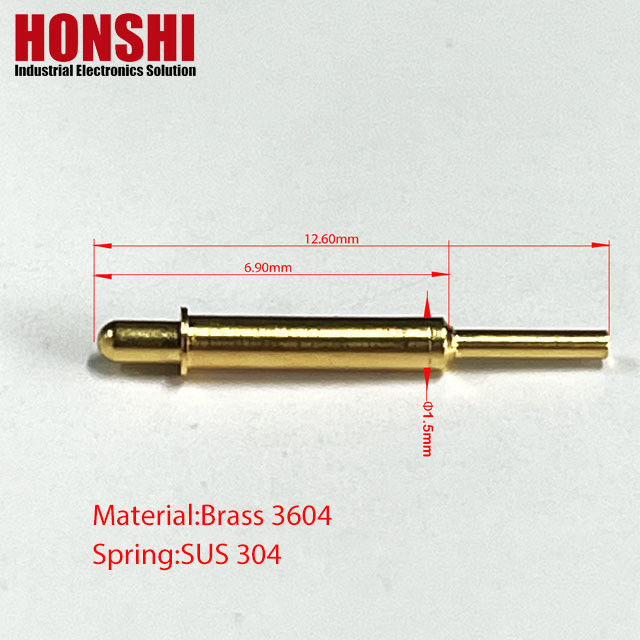

Spring Force Pogo Pin Connector With Working Height 4.9mm Dip Type Pogo Pin 3

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

Spring Force Pogo Pin Connector With Working Height 4.9mm Dip Type Pogo Pin 4
