Product Description
| Part number |
A422514FG0SV500R01 |
| Description |

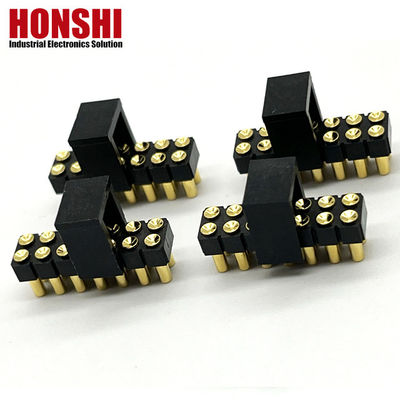

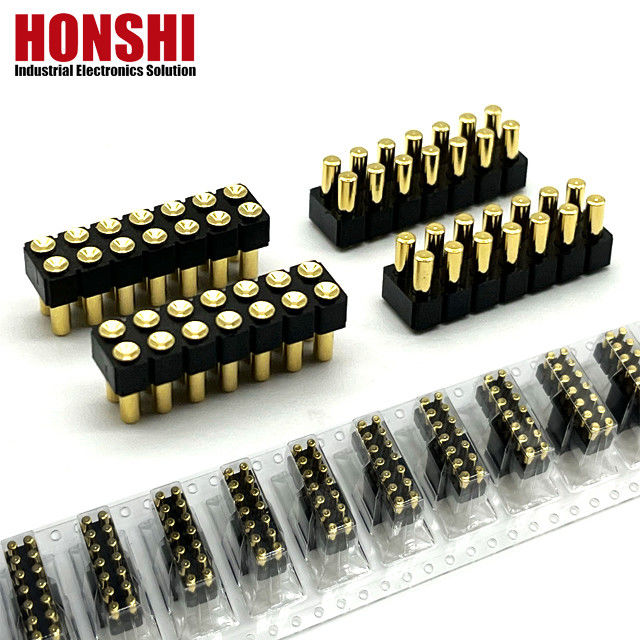

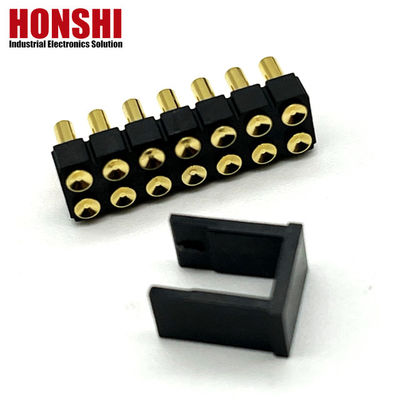

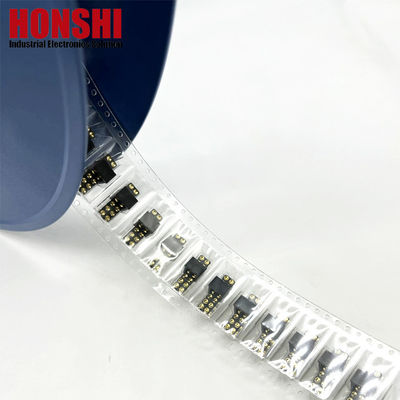

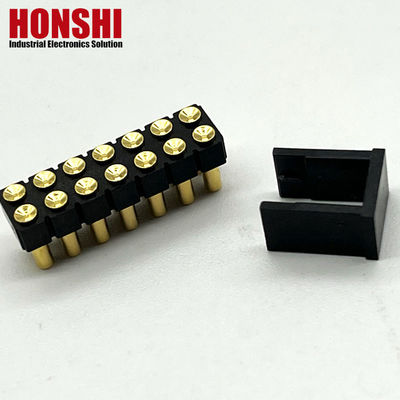

Customized 2.54mm 2x7Pin pogo pin SMT type 1u" gold plated Brass Contact Surface is concave, Reel+CAP packing |
| Material |
| Plunger |
Brass 3604
|
| Barrel |
Brass 3604 |
| Spring |
SUS304 |
|
Electrical
|
| Rated current |
1.0A / Customized |
| voltage |
DC 12V |
| Contact resistance |
50 mohm maximum at normal working height(quiescence) |
| Mechanical |
| Spring force |
100g±20% at normal working height |
| Durability |
20,000 cycles(minimum) |
| Operating Temp |
-40°C~+105°C |
| Salt Spray |
48H |
| Application |
PCB,AV equipment,medical equipment,military communication,aerospace,Phone watch, electronic |
| Samples |
Inventory simple 2-3day /customizd simple 5day |
| Delivery Date |
10~15days after confirm your orders |
| Customized pogo pin warmly welcome W/LOW MOQ |
Drawing details
FAQ
1. Q:What ‘s MOQ ?
A: MOQ 500PCS.
2. Q: What’s samples quantity you can get with free?
A:You can get 30pcs free samples
3. Q: What’s samples lead time?
A: 3-5 working day.
4. Q: What’s mass production delivery date?
A: 2 Weeks.
5. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
6. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
7. Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 30-40days.
8. Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
9. Q: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.If you need many items, or need more qty for each item,we will charge for the samples.
10. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, tsuch as DHL,FedEx,,UPS,TNT.That's a
Door to Door service.For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.
