Powerful Custom Brass Machined CNC Milling Turning Shaft Parts for High Demand Power Transmission Applications
| Product characteristics |
| Product Description: |
Machined Pins |
| Size: |
0.8/1.0/1.5mm or Customized |
| Material |
|

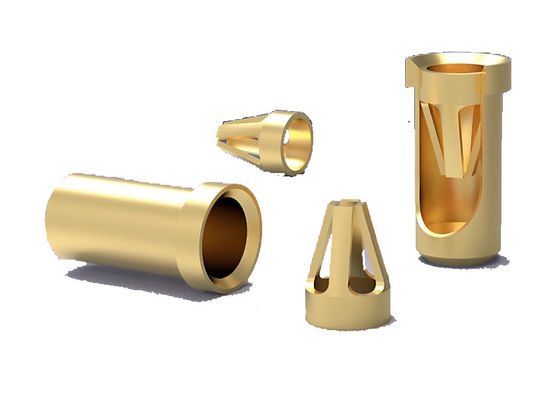

| Pin (outer sleeve) : |
Brass |
| Clip (contact6 finger): |
Beryllium copper, heat treated |
| Plating (Outer sleeve): |
Tin plated :1.25μm/50μ"nickel, |
| Plating (contact) : 1.25μm/50μ"nickel, gold flash or Tin plating |
| Surface treatment: |
Zinc plated/nickel/plain/ect. |
| Equipment: |
Auto Lathe Machined/Milling Machines |
| Process: |
CNC Turning |
| Mechanical Life: |
100,000 cycles |
| Resistance to solder heat: |
260℃±5℃ 20s±2s |
| All materials comply with"ROHS" environmental protection standards |
| Customized POGO PIN Warmly welcome W/LOW MOQ . |

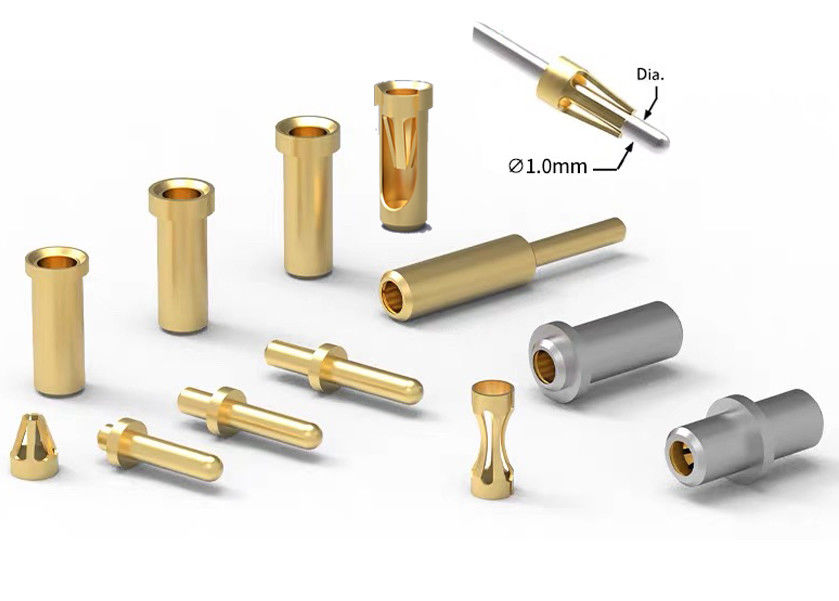

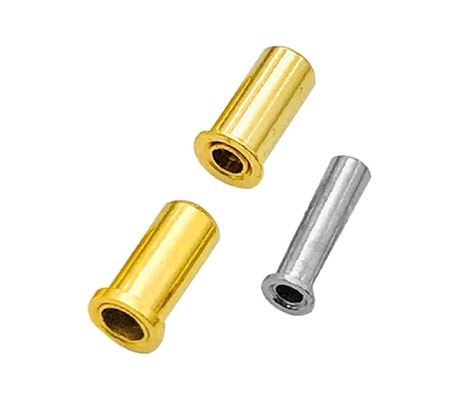

Machined Connector Pins
Circular hole pin is a common electronic connection device, usually made of metal material, with a row of small circular holes, mainly used for connecting, plugging, positioning, fixing, assembling, expanding, heat dissipation, and protection of electronic devices.
Main purpose
1. Connecting electronic devices: The machined pin is inserted into the circular hole on the circuit board to achieve connection between the circuit board and other electronic devices, transmitting signals and power.
2. Plug and unplug connection: The machined pin has the characteristic of being detachable, which facilitates the insertion and removal of electronic components and is suitable for occasions that require frequent replacement or debugging.
3. Positioning and fixing: In the assembly and manufacturing process of electronic devices, machined pin are used to position and fix electronic components, ensuring accurate and error free positioning.
4. Combination and expansion: machined pins arrangement can connect multiple electronic components together to form a complete circuit system, and expand functions and interfaces through different specifications of needle arrangement.
5. Heat dissipation and protection: Circular hole needles can be used as thermal conductive materials to connect electronic components with heat sinks, accelerating heat conduction and dissipation; At the same time, it can also be used for external protection of equipment.
How to order
-
Design drawings and optimize structures according to customer needs.
-
Customized processing based on drawings and samples, with free samples available in stock.
-
High precision CNC automatic lathe ensures product processing accuracy.
-
Select electroplating processing manufacturers to ensure the quality of product electroplating.
-
Provide raw material procurement inspection reports and product inspection reports.
If we don't have the size what you need, please provide your design drawing to us, we can customize it for you
also if you need more details machined pins data sheet. you can send me E-mail : sales@dghonshi.com
Or you can download our all kinds of Machined pins catalog for REF.thank you.
